BAHR QSZ

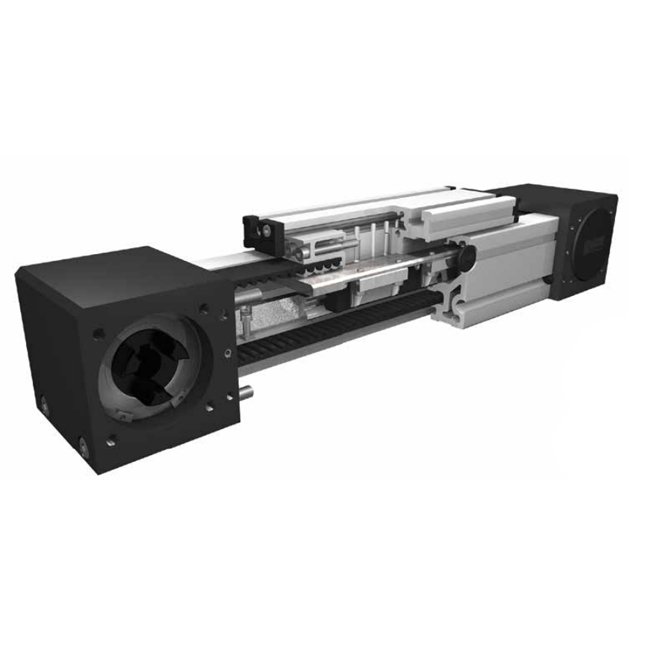

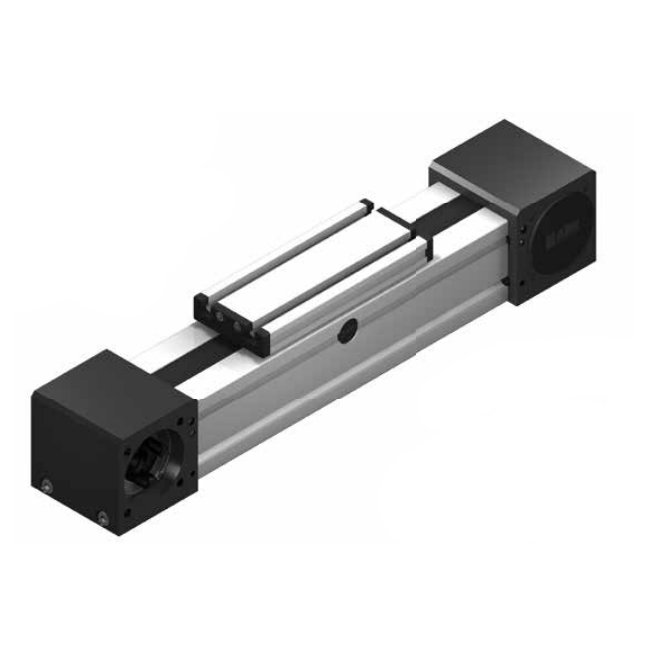

This unit consists of a square aluminium profi le with an integrated ball rail. The carriage is moved by a belt drive. Each standard pulley includes one coupling claw on one side.

Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel.

Fitting position: As required. Max. length 6.000 mm without joints.

Carriage mounting: By T-slots.

Unit mounting: By T-slots and mounting sets. The linear axis can be combined with any T-slot profie

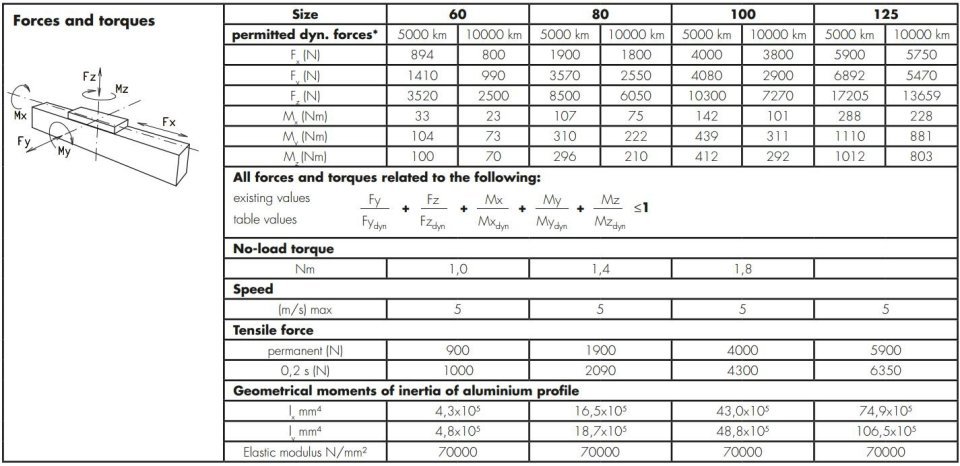

Belt Peformance: HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm. Travel speed: max. 6 m/s

Carriage Support: In the standard version, the carriage runs on two runner blocks which can be adjusted and serviced at a central servicing position. For longer carriages the number of runner blocks can be increased.
