BAHR LLZ

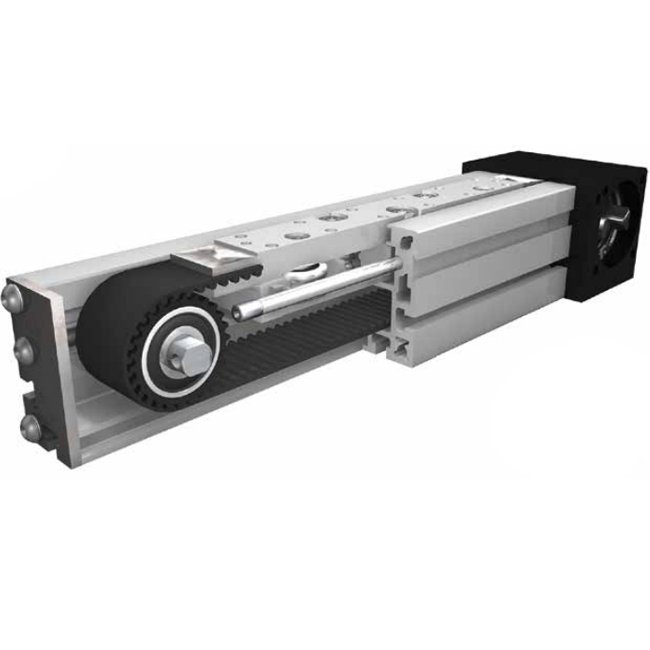

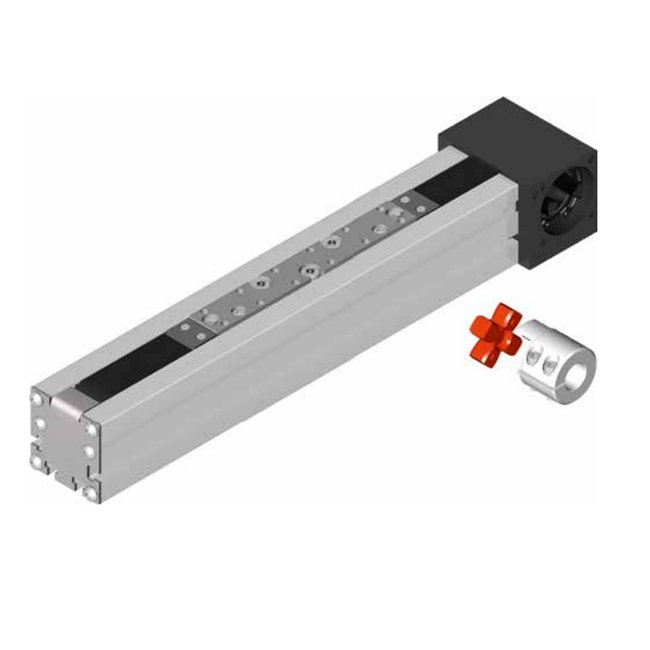

The guide body consists of an aluminium square profile, with an integrated roller guide. The carriage is moved by means of an internal rotating toothed belt. On one end there is a pulley block with coupling claws on both sides (standard version).

On the opposite end there is a plate with a retensioning device for the toothed belt.

Fitting position: As required. Max. length 6.000 mm without joints.

Carriage mounting: By T-slots.

Unit mounting: By half round slots and tapped holes in the bearing blocks, mounting sets

Belt Peformance: HTD with steel reinforcement, no backlash when changing direction, repeatability ± 0,1 mm. Travel speed: max. 4 m/s

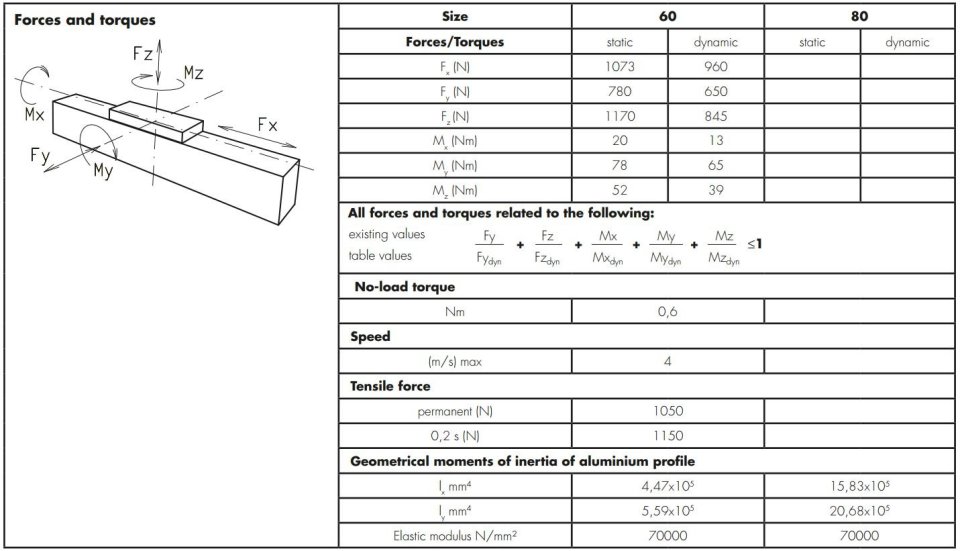

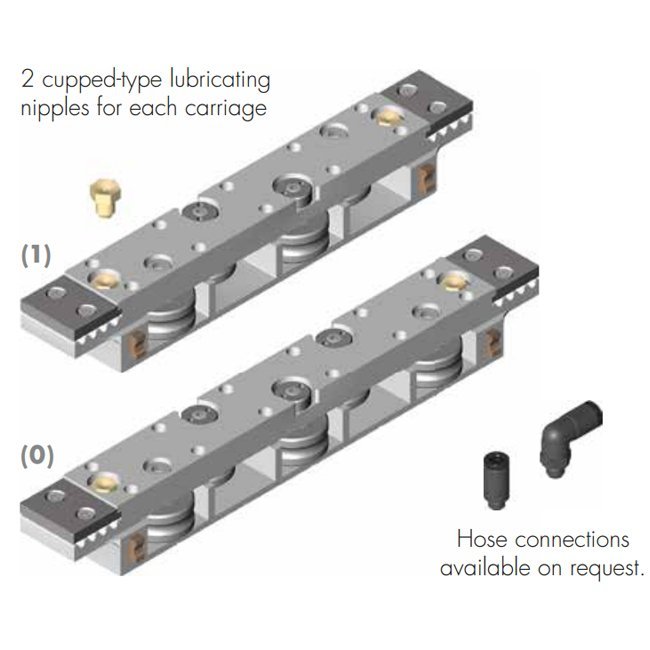

Carriage Support: The carriage runs on 5 rollers which can be adjusted and serviced at each central servicing position. Two grease nipples at the carriage enable relubrication of the positioning system.
