CX5140 | Embedded PC with Intel® Atom™ processor
CX5120, CX5130 and CX5140 are Embedded PCs from the CX5100 series based on the Intel® Atom™ multi-core processors. They differ from one another in housing width and CPU type. What is new is that the available Atom™ CPUs now also introduce genuine multi-core technology, extending up to quad-core, into the compact Embedded PC segment.
Since the new devices are an extension of the existing CX5000 series, they are equipped with identical hardware interfaces. Two independent Gigabit-capable Ethernet interfaces as well as four USB 2.0 and one DVI-I interface are available. A multitude of further connection options and gateway functions is created by the multi-option interface, which can be pre-equipped ex factory, as well as the I/O level, which can optionally consist of either E-Bus or K-Bus Terminals.
All devices in the series are characterised by low power consumption and fanless design.
Depending on the installed TwinCAT runtime environment, the CX5100 can be used for implementing PLC or PLC/Motion Control projects with or without visualisation. The execution of Motion Control applications with interpolating axis movements is also possible.
The extended operating temperature range from -25 to +60 °C enables the use of the CX5100 Embedded PCs in climatically demanding environments.
Like the CX5000, the CX5100 series has a compact design; a modular device with extension modules like in the CX2000 series is not available.

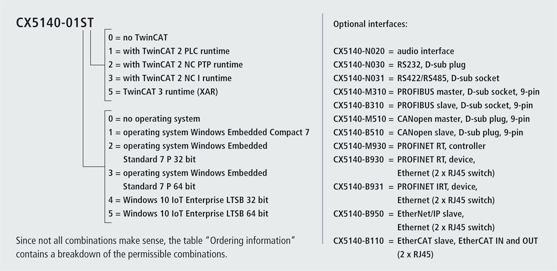

The order number of the basic CPU module can be derived as follows:
Overview
| Technical data | CX5140 |
|---|---|
| Processor | Intel® Atom™ E3845, 1.91 GHz |
| Number of cores | 4 |
| Flash memory | slot for CFast card and for microSD card (cards are not included) |
| Internal main memory | 4 GB DDR3 RAM (not expandable) |
| Persistent memory | integrated 1-second UPS (1 MB on CFast card) |
| Interfaces | 2 x RJ45, 10/100/1000 Mbit/s, DVI-I, 4 x USB 2.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded Compact 7, Microsoft Windows Embedded Standard 7 P or Microsoft Windows 10 IoT Enterprise LTSB |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15 %/+20 %) |
| Current supply E-bus/K-bus | 2 A |
| Max. power loss | 12 W (including the system interfaces) |
| Dimensions (W x H x D) | 142 mm x 100 mm x 92 mm |
| Weight | approx. 960 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL, Ex, IECEx |
| TC3 performance class | performance plus (50); please see here for an overview of all the TwinCAT 3 performance classes |
Brochures

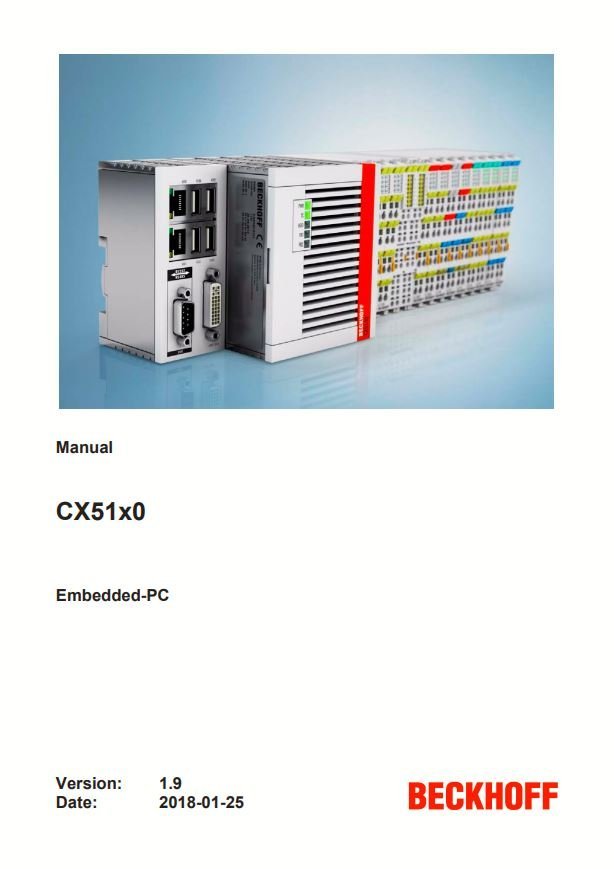

Manuals
