C6030 | Ultra compact Industrial PC
Ultra compact PC based on Intel Atom & Core I CPU
With integrated multi-core support, the C6030 can be used simultaneously for high-performance automation, visualisation and communication. Its flexible mounting options with virtually free orientation of the PC's position allow a wide range of installation scenarios even in the most confined spaces.
Through the use of an extremely durable, speed-monitored and controlled fan, the C6030 is suitable for a temperature range of up to +50 °C, depending on the CPU. With a size of only 129 x 133 x 76 mm, it is twice as compact as the previously smallest C6930 IPCs. In addition, the C6030 scores points with price savings, making it the most cost-effective Core i-series PC offered by Beckhoff to date.
Equipped with a storage capacity of 30 GB M.2-SSD, 3D Flash, it is fully functional in its basic configuration. Options include Windows 7 or Windows 10 operating systems and a second M.2 SSD in a RAID network. With a choice of 8 different CPU types, the C6030 can be perfectly matched to individual application requirements.
Overview
| Housing | Industrial PC for space-saving control cabinet installation |
| Mounting plate on the rear wall for the free alignment of the connecting area | |
| All connectors on the same level | |
| Flexible mounting mechanism for the free alignment of the connecting area | |
| Aluminium zinc die-cast housing | |
| Status LEDs | |
| Lithium battery easily accessible under the side cover | |
| 2 slots for M.2 SSDs easily accessible under the side cover | |
| Controlled fan with speed monitoring and double ball bearings, exchangeable | |
| 5 cm (2") free space required around the PC for air circulation | |
| Protection class IP 20 | |
| Operating temperature 0…50 °C | |
| Compact dimensions (W x H x D) 129 x 133 x 76 mm (5.2" x 5.2" x 2.6???") without mounting plate |
| Features | Processor Intel® Celeron® G3900 2.8 GHz, 2 cores (TC3: 50) |
| Compact motherboard for 6th and 7th Generation Intel® Core™ i3, Core™ i5, Core™ i7, Celeron® or Pentium® | |
| 4 GB DDR4 RAM, expandable to 32 GB, with a 32 bit operating system only 3 GB are addressable. | |
| Graphic adapter integrated inside the Intel® processor, 2 DisplayPort connector | |
| On-board Ethernet adapter with 4 x 100/1000BASE-T connector | |
| 30 GB M.2 SSD, 3D flash, extended temperature range | |
| 4 x USB 3.0 | |
| 24 V DC power supply |

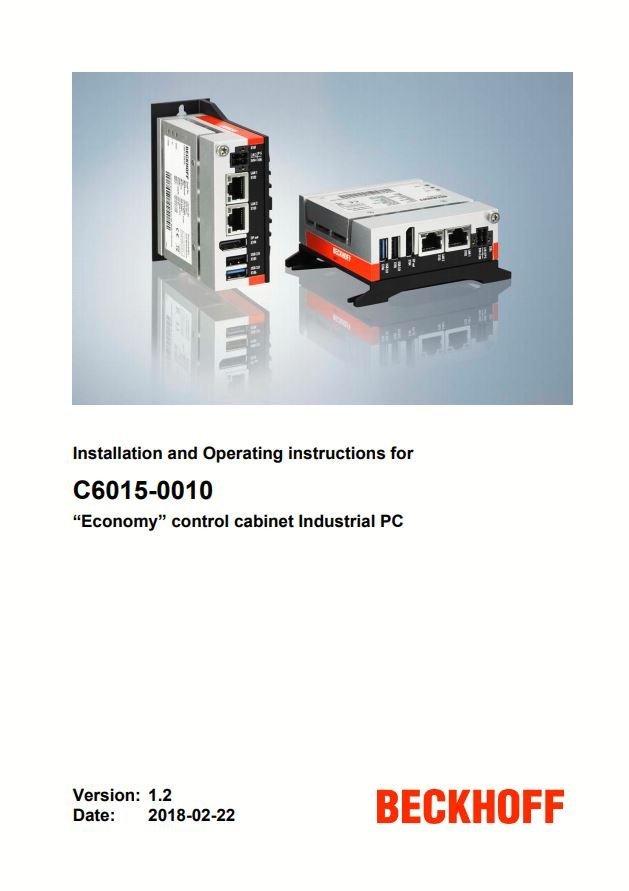

Manuals
