Siemens SGG-A Axial Plus In - 4.5-500 Nm

---

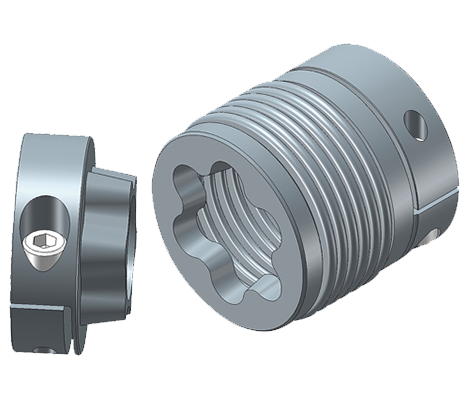

The variant with axially plug-in clamping hub is designed for simple blind or bell housing assembly.

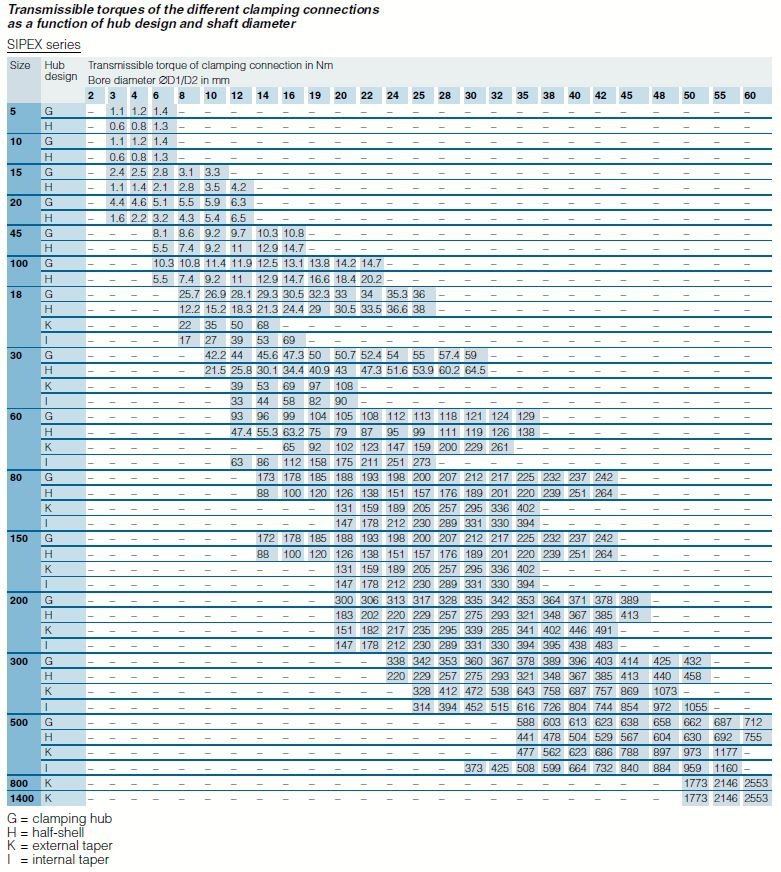

The maximum torques that can be transmitted by the clamping connection are listed in the table below (Manuals)

A keyway according to DIN 6885-1 can be selected additionally as an option.

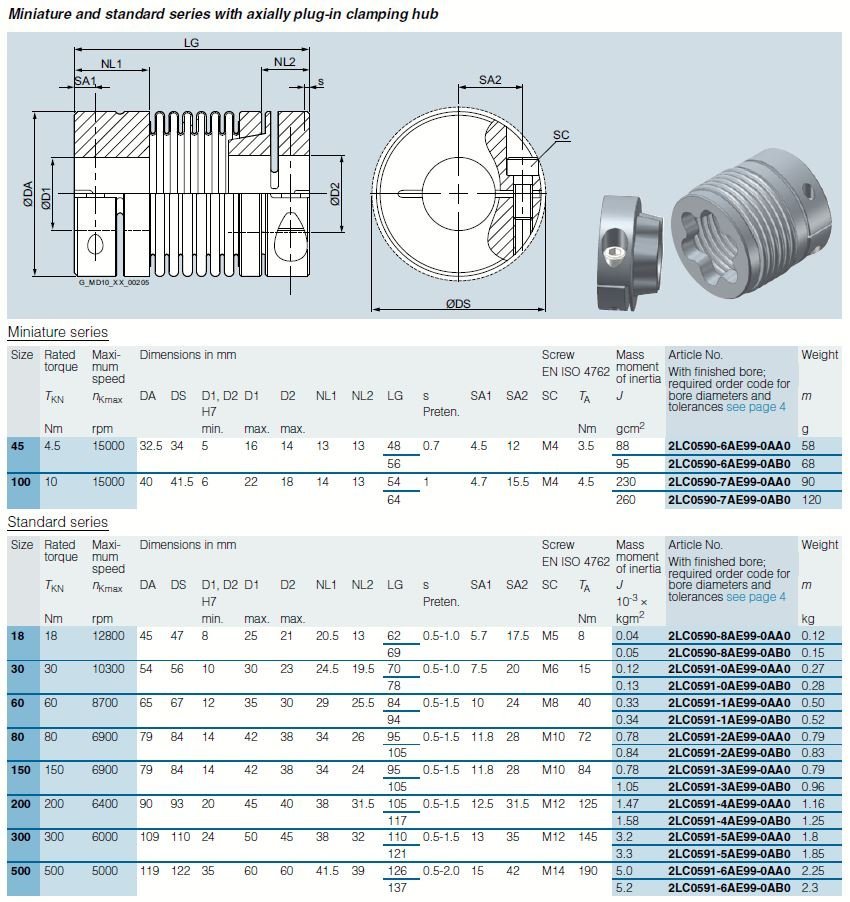

Weights and mass moments of inertia apply to maximum bore diameters.
