Siemens SGG Clamping Hub - 0.5-500 Nm

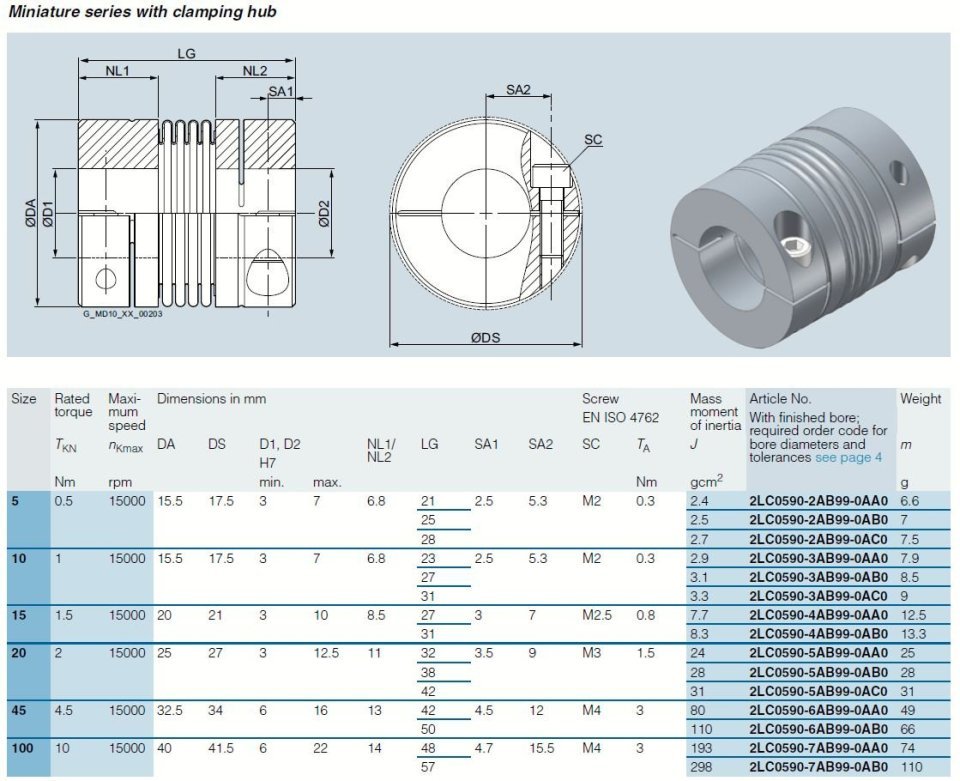

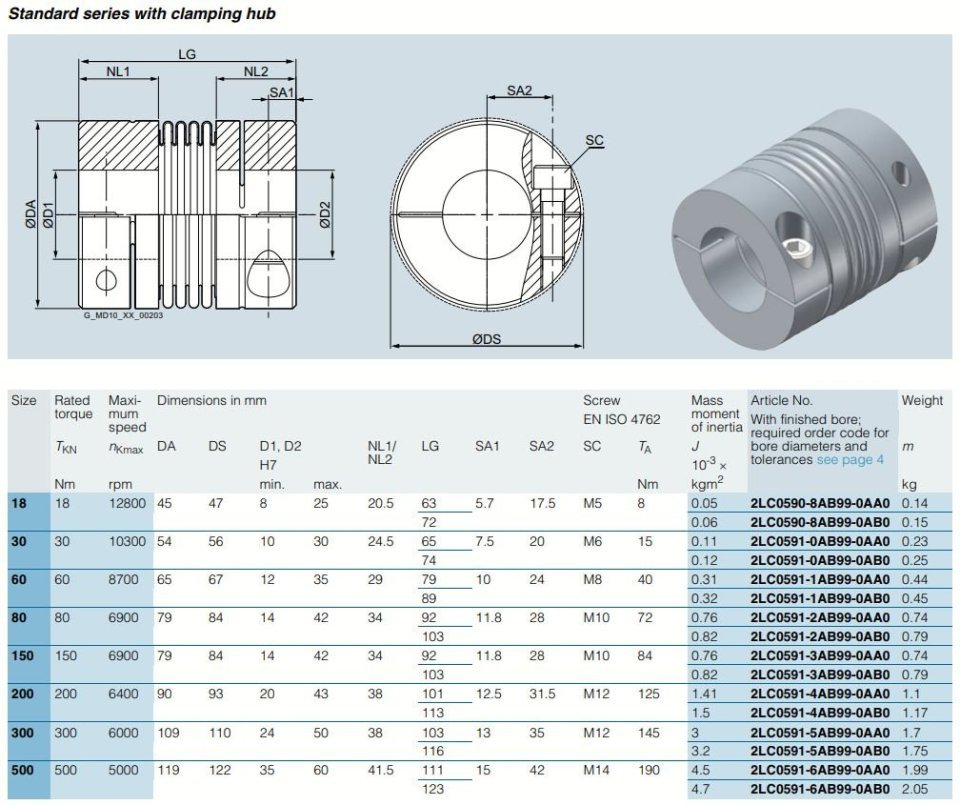

The SGG Clamping Hub is available as a Miniature Series (0.5 - 10 Nm) and Standard (18 - 500 Nm)

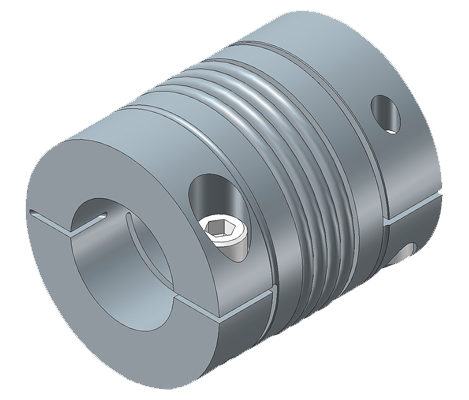

The slotted clamping hub allows a frictionally engaged connection to the input and output shaft. A single tightening screw per hub ensures easy assembly.

The maximum torques that can be transmitted by the clamping connection are in the table below (Manuals).

A keyway according to DIN 6885-1 can be selected additionally as an option. Weights and mass moments of inertia apply to maximum bore diameters.
