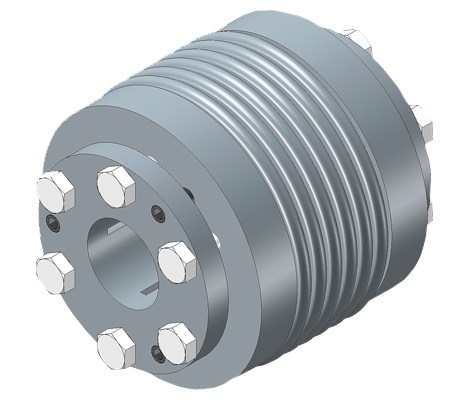

Siemens SII Internal Taper - 18-5000 Nm

---

The clamping hubs with internal taper are the ideal solution for high-speed and highly dynamic applications. These couplings require less installation space than SKK.

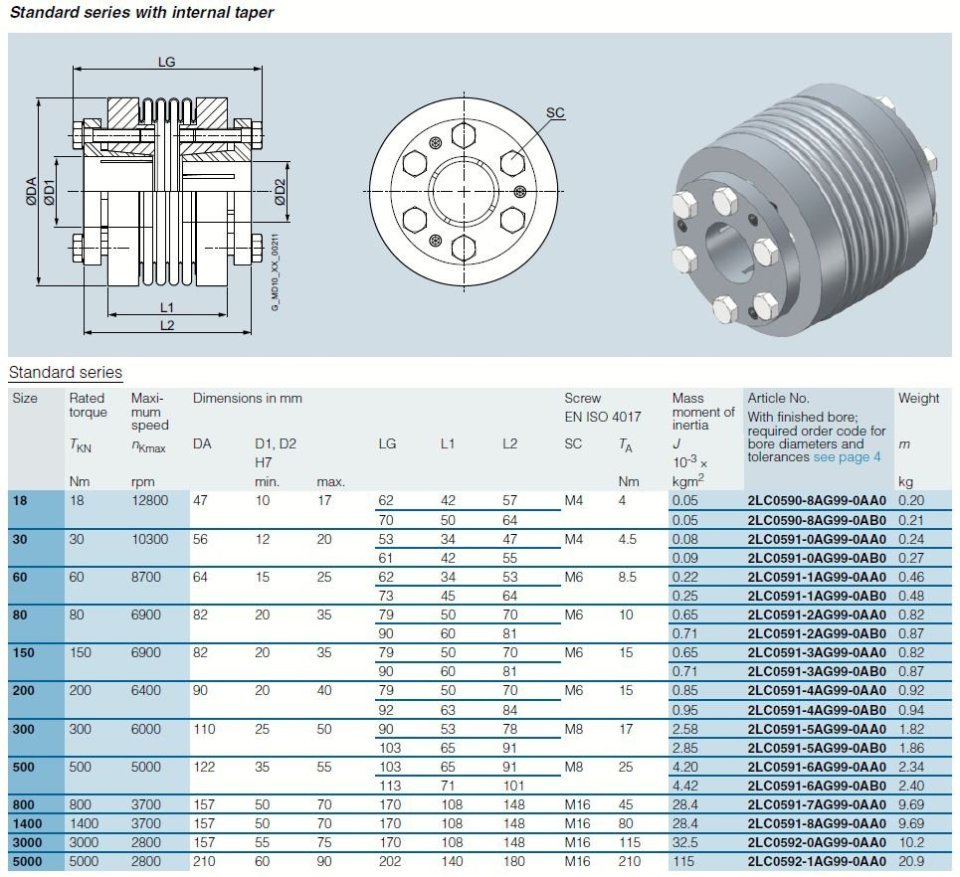

The maximum torques that can be transmitted by the clamping connection are listed in the table below (Manuals).

Weights and mass moments of inertia apply to maximum bore diameters.
