BHH Half-Shell Clamping Hub Elastomer Jaw Coupling 7.5 - 310 Nm

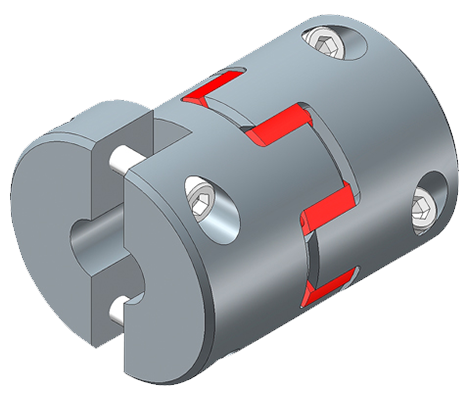

It is possible to radially assemble and dismantle the hub version with half-shells without moving the connected units.

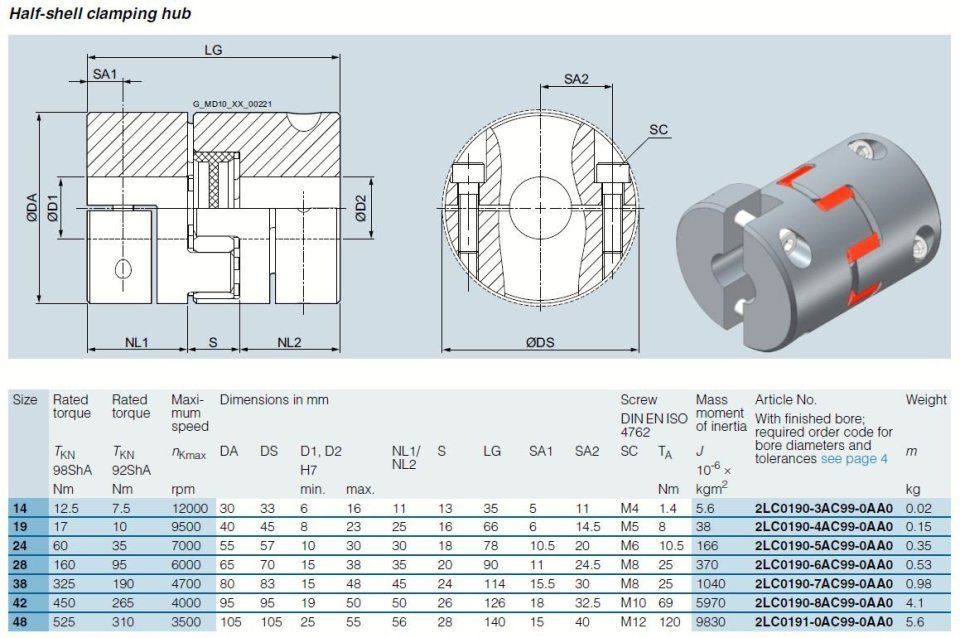

The maximum torques that can be transmitted by the clamping connection can be seen in the below table (Manuals).

Cam ring made of polyurethane with Store hardness 98 ShA as standard (red cam ring).

For other hardness grades, please see the (Downloads) tab.

Weights and mass moments of inertia apply to maximum bore diameters.
