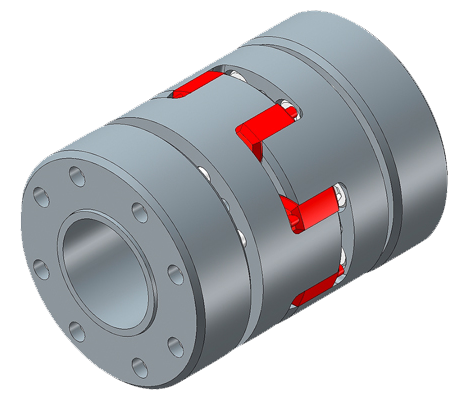

BKK Clamping Hub with External Taper Elastomer Jaw Coupling 7.5 - 310 Nm
The clamping hubs with external taper are the ideal solution for high-speed and highly dynamic applications. The clamping ring is made of steel.

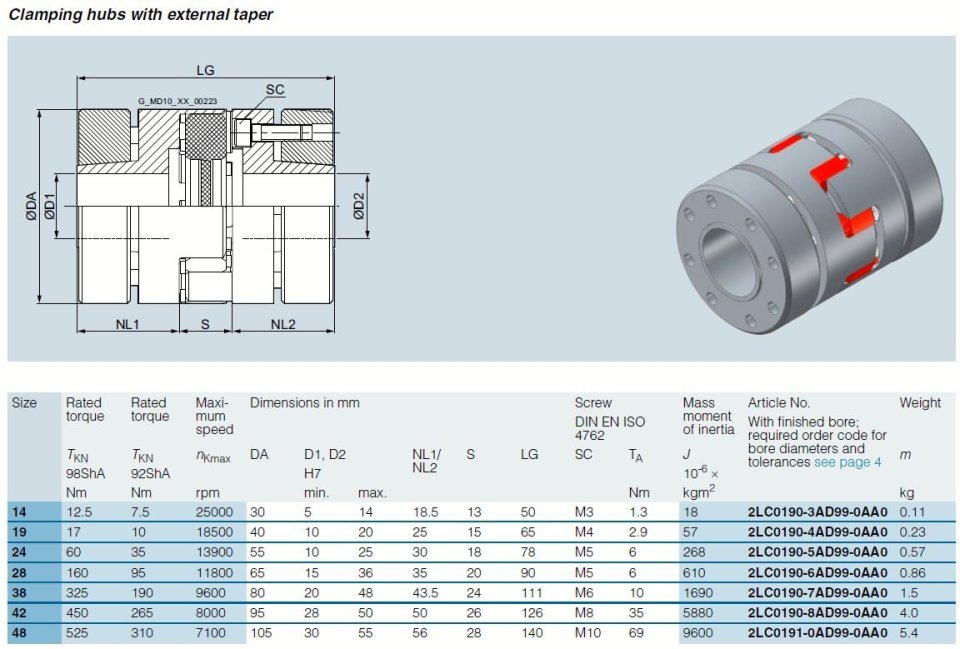

The maximum torques that can be transmitted by the clamping connection are listed in the table below (Manuals).
Cam ring made of polyurethane with Shore hardness 98 ShA as standard (red cam ring).
For other hardness grades, please see table below in the (Downloads) tab.
Sizes 14 to 48 are also available on request as a light weight version with hubs and clamping rings made of aluminum (type designation BKK-L).
Weights and mass moments of inertia apply to maximum bore diameters.
Overview
Brochures
Manuals
Downloads
FLENDER Couplings Configurator
Simple configuration: online in X.CAT NG.
*More info can be found on page 24 of the brochure
