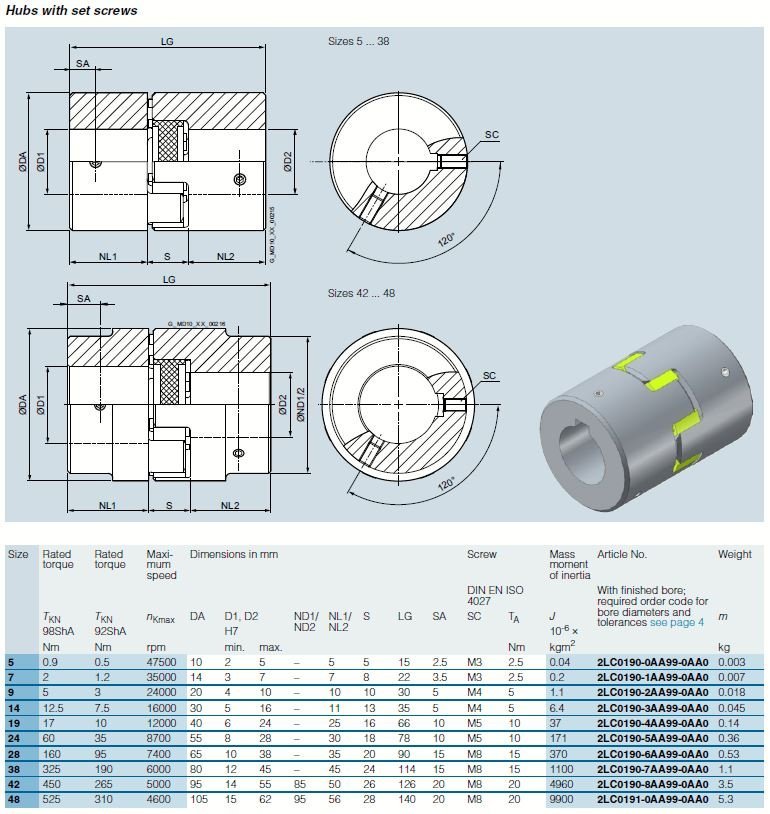

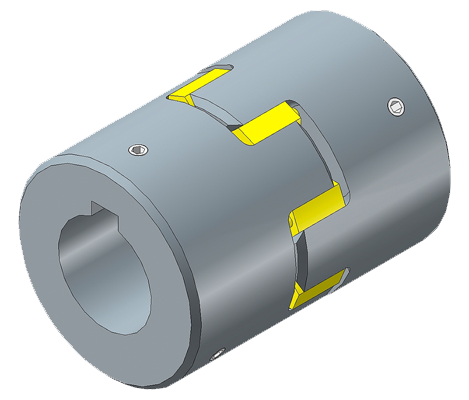

BNN Set Screw Elastomer Jaw: 0.5-310 Nm

---

Shaft is connected to hub by means of feather key according to DIN 6885-1. The keyway can be optionally omitted and the shaft connected the the hub solely by means of set screws.

Cam ring make of polyurethane with Shore hardness 92 ShA as standard (yellow cam ring).

For other hardness grades, see table below (Downloads).

Weights and mass moments of inertia apply to maximum bore diameters.
