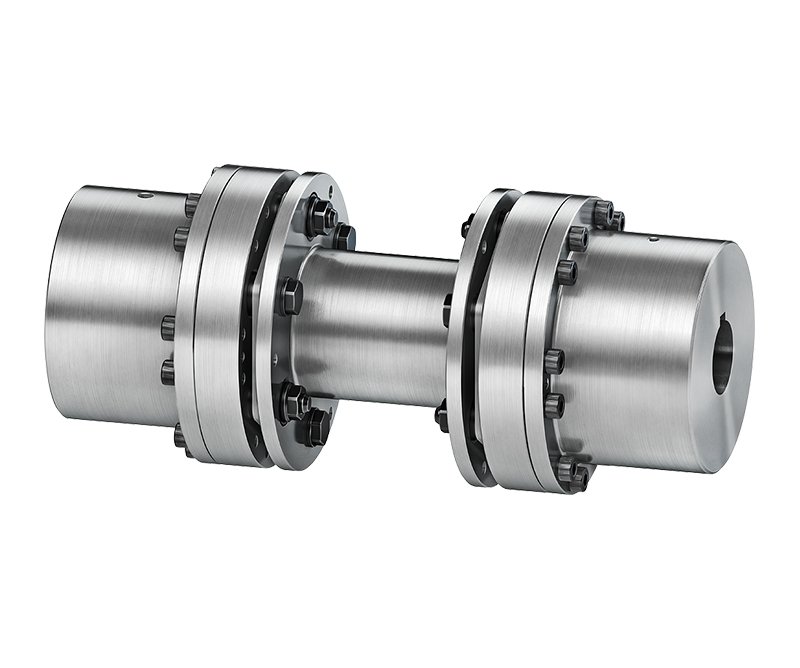

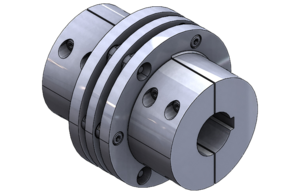

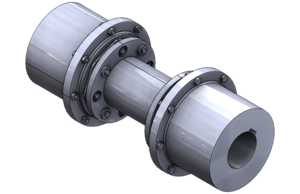

Siemens ARPEX Disc Couplings

ARPEX all-steel couplings are free of backlash, have a compact design and are characterized by a low power-to weight ratio. They are suitable for use at high ambient temperatures and particularly for machines that must be driven precisely, e.g. paper and printing machines, pumps, compressors and high-speed generators.

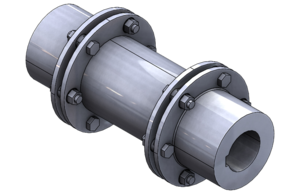

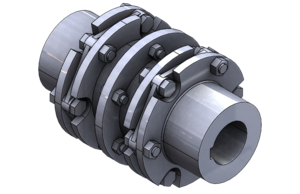

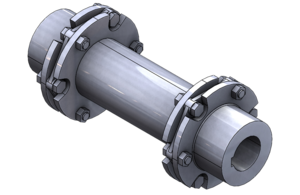

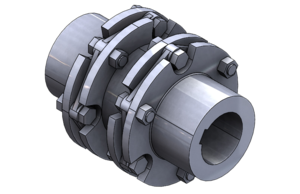

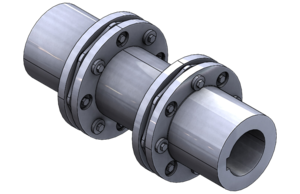

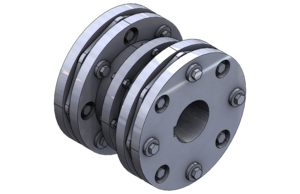

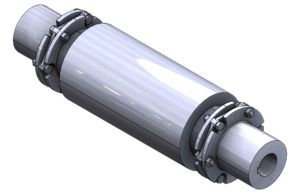

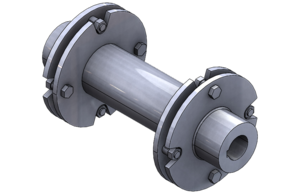

With numerous standard components, ARPEX couplings can be combined into a wide variety of designs that can be used in many applications. The product range includes eight different series with performance ranges from 92 Nm to 1,450,000 Nm.

Your advantages

• Shaft misalignment in angular, radial and axial directions possible
• Independent of the direction of rotation (suitable for reversing operation)
• Needs no maintenance and operates without wear
• Torsionally rigid and free of circumferential backlash
• Resistant to temperatures of from -50 °C to +280 °C
• Low restorative forces
• Low-vibration (even with maximum permissible speeds)
• Conformity to API610/IS0 13709 and API371/ISO 10441
• Series can be applied in potentially explosive environment, certified to 2014/34/EU
• Easy assembly through compact structural design
• Covers a wide power range thanks to the large number of different series and sizes
• Configuration to suit application requirements possible
