KeDrive D3-AC

Economical drive technology for compact machines

All-in-one multi-axis drive

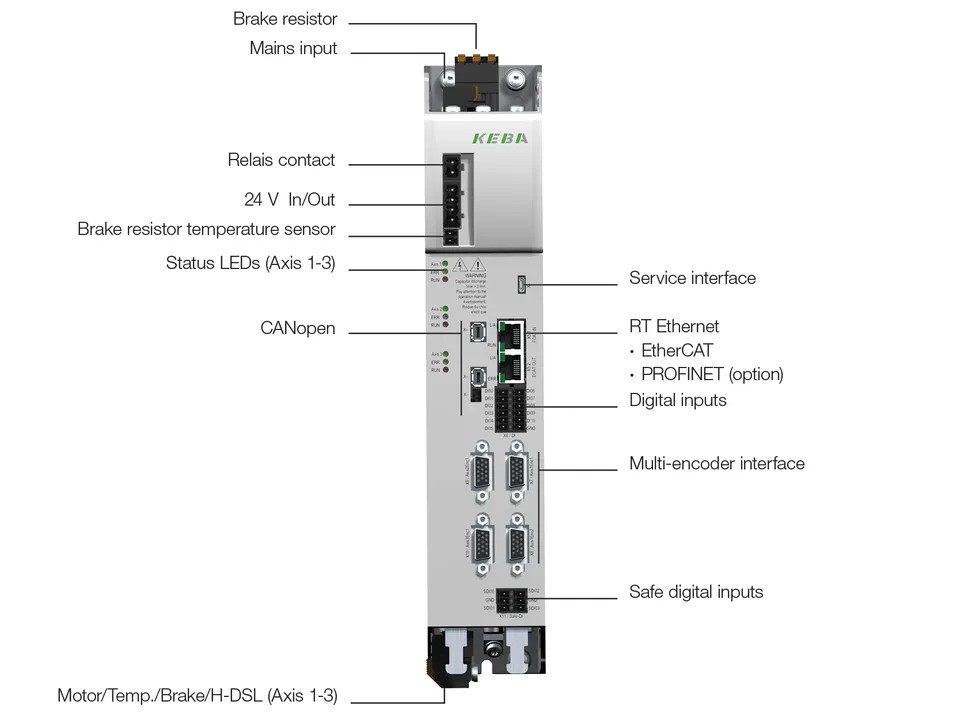

Machines with limited drive requirements benefit greatly from all-in-one solutions like the KeDrive D3-AC. This innovative system integrates AC mains input, motor output, control, a mains filter, and a braking resistor into a single unit.

What sets the KeDrive D3-AC apart is its ability to house up to three axis controllers within one compact device. This not only minimizes space usage but also significantly reduces wiring complexity, making it an efficient and streamlined choice for automation needs.

Focus on handling applications

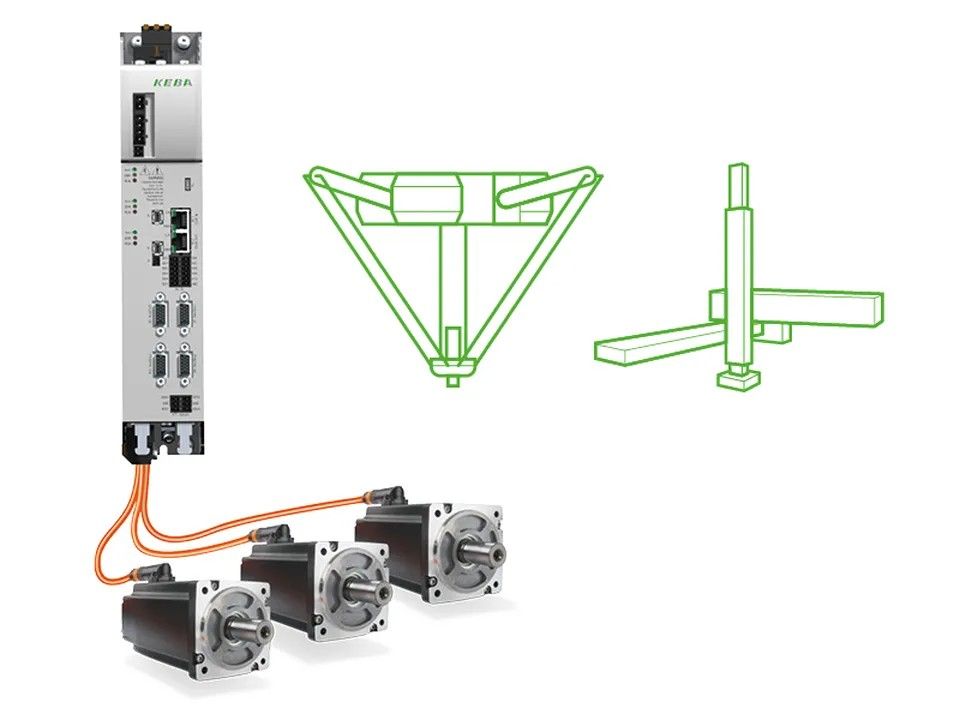

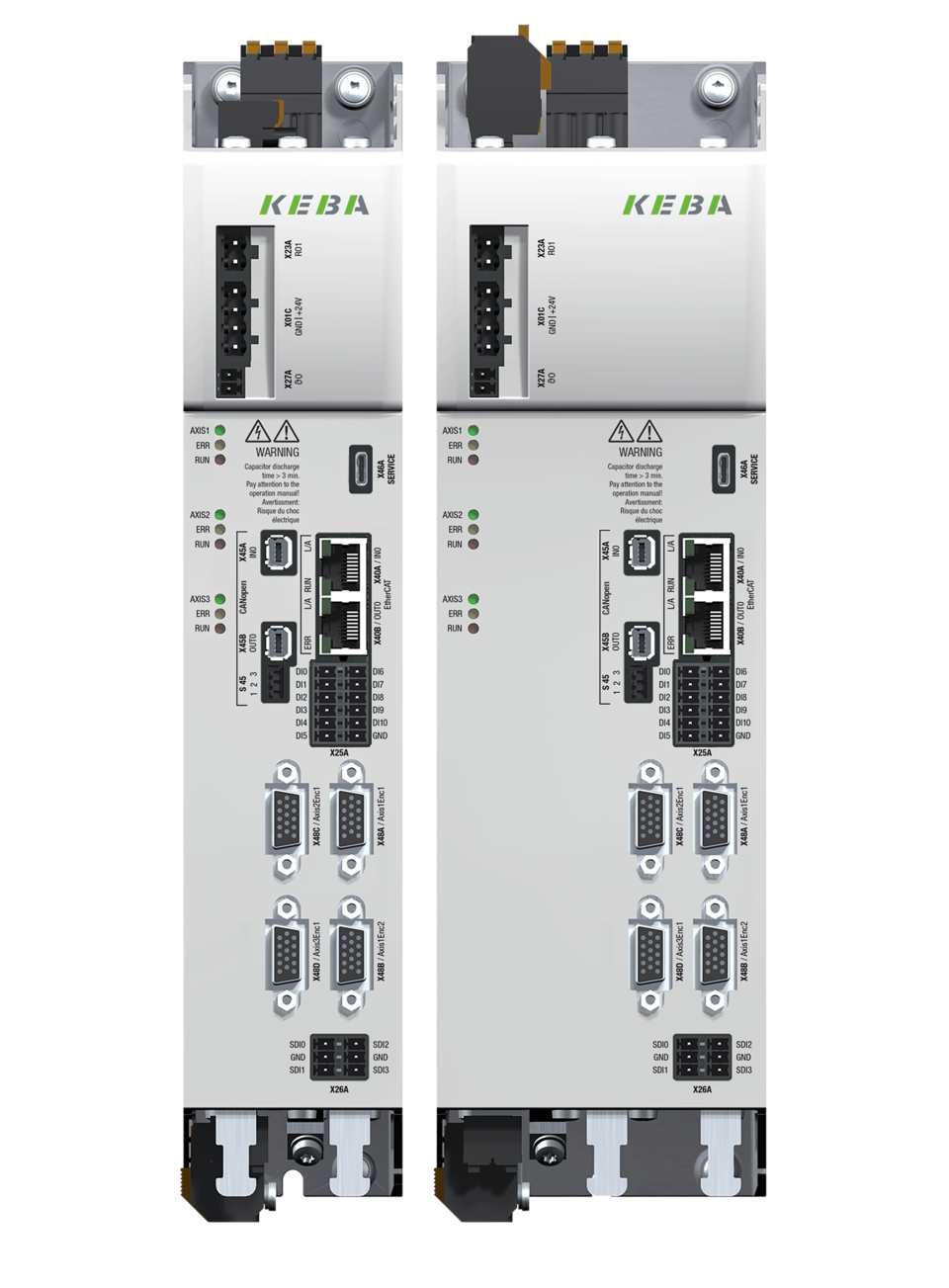

The KeDrive D3-AC is an ideal solution for triple-axis handling kinematics, particularly Cartesian robots that often require higher drive power for one axis. To accommodate these needs, triple-axis drives are available with rated currents of 4A|4A|6A or 8A|8A|12A.

Additionally, gantry systems with multiple motors can be efficiently managed using an integrated axis function module, ensuring precise and synchronized control for complex automation setups.
