Siemens SINAMICS S200

The servo drive system

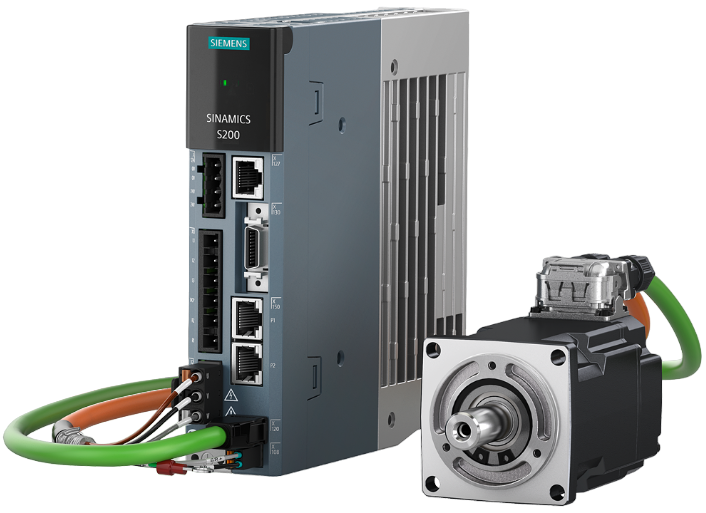

The system comprises a SINAMICS S200 servo drive, a SIMOTICS S-1FL2 servo motor and Motion Connect cables. With a power range extending from 0.1kW up to 7kW and various communication options such as PROFINET IRT and pulse train, the system has been specifically designed to address a wide range of standard applications.

Higher productivity, improved efficiency but at a lower cost... Siemens are always looking to achieve an optimal balance in today's fast-changing market. This is precisely where the new member of the SINAMICS family comes into its own: The SINAMICS S200 servo drive system.

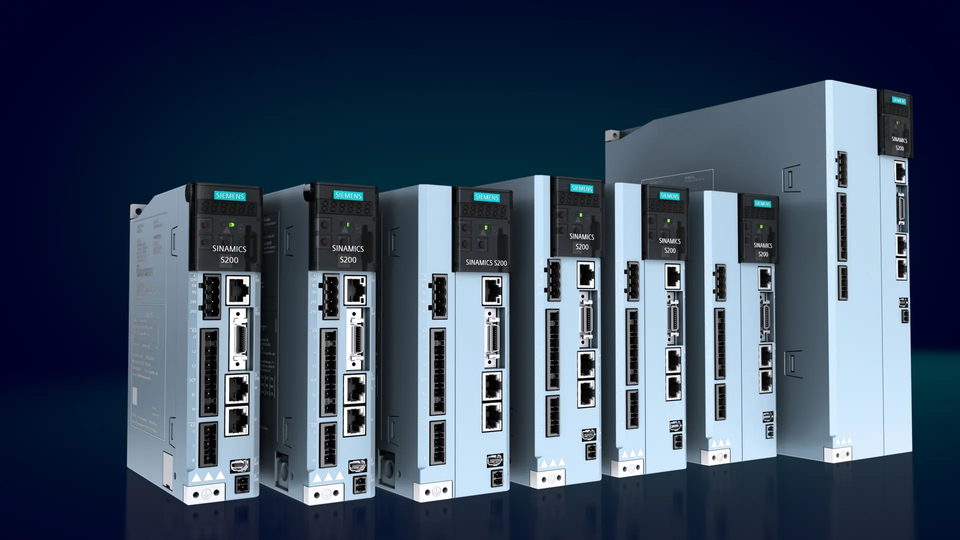

SINAMICS S200 with optimized performance and options for versatility

Integrating the servo drive into your existing system is a seamless experience. It consists of a basic version and a standard version with Pulse train (PTI) or PROFINET RT/IRT (PN) communication types to meet various needs of applications and works perfectly together with SIMATIC controllers.

Advantages

Fast current controller with cycle time of 125µs (PN).
Fast communication via PROFINET IRT
8KHz PWM frequency for reliable operation
Reduced space requirement thanks to compact system design
Optimized cost with Integrated brake resistor and holding brake control

Optimised

Response optimized with fast current controller cycle as well as PROFINET IRT communication to controllers
Power optimized with up to 350% overload capacity
Precision optimized with up to 21 bits high-resolution encoder

Cost-effective & Reliable

Reduced space requirement thanks to the compact system design
Easy control with integrated holding brake control and brake resistor
Easy engineering via Webserver and SINAMICS Startdrive
Easy implementation with global standards and certifications

Easy to use

Fit for your applications via flexible hardware solutions and complete TIA offering
Fit for digitalization on machine simulation with SINAMICS DriveSim.
Fit for your security needs by providing reliable protection and secure access to your automation processes.

Overview

Power Range:	200 V ... 240 V 1/3 AC 0.1 kW ... 1 kW 380 V ... 480 V 3 AC 0.2 kW ... 7 kW
Current Controller Cycle	125 μs for PN
EMC Category:	C2 with external line filter
Brake Resistor:	Integrated brake resistor (>0.1kW)
Holding Brake:	Direct control of motor holding brake
Overload Capacity:	Max. 350% (up to 0.75kW); Max. 300% (up to 7kW)
Safety Functions:	STO via terminal (SIL 3/ PLe)
Commissioning/Engineering	Web server / SINAMICS Startdrive
Certifications:	CE, cULus, RCM, EAC, KC, UKCA
Motor Range:	SIMOTICS S-1FL21 Low inertia SIMOTICS S-1FL22 Medium inertia SIMOTICS S-1FL23 High inertia
Toque Inertia:	Mn: 0.16 – 33.4Nm
Encoder Systems:	Absolute encoder single turn 17 bit/21 bit Absolute encoder multiturn 21 bit + 12 bit
Degree Of Protection:	IP65 (for shaft height 20/30/40 is IP54, IP65 as an option)
Motor Connection Options:	Standard cable, flexible cable
Motor Connection Technology:	One-push-lock motor connection for low and medium inertia motors
Scalable System:	SIMATIC S7-1200 SIMATIC S7-1500/T ET200SP Open controller SIMOTION
