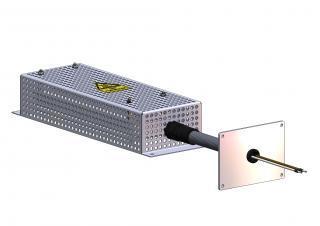

The decentral inverter with a high protection class (up to IP66) is built in a modular way, consists of a control unit and power module, and is designed for use as a motor-integrated inverter on SIMOGEAR gearmotor. A safe brake resistor that meets comparable requirements is best suited for these special demands. KOCH has also created a fitting solution here. Whether the inverter is equipped with an option such as a maintenance switch or a 24V power supply, or it is used without such an option, the external brake resistors can be connected easily and without hassle.

A​dvantages:

• compact
• space saving
• protection class up to IP 65*
• highly impulse secure
• low inductance
• "intrinsically safe"** under persistent overloads

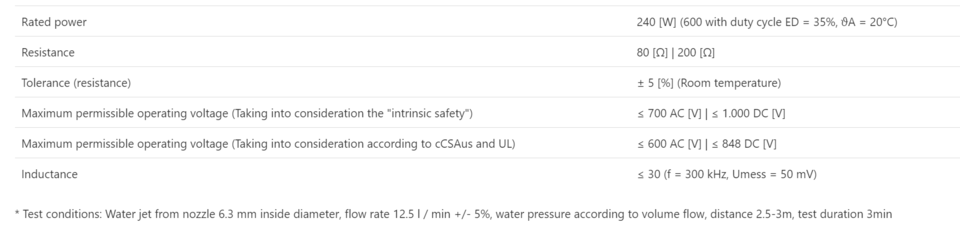

*Test conditions: Water jet from nozzle with an inner diameter of 6.3mm, volume flow 12.5l/min +/- 5%, water pressure in accordance with the volume flow, distance 2.5-3m, test duration 3min

**the intrinsically safety is usually given with 4 time of permanent type power
