Comfort and safety at the highest level

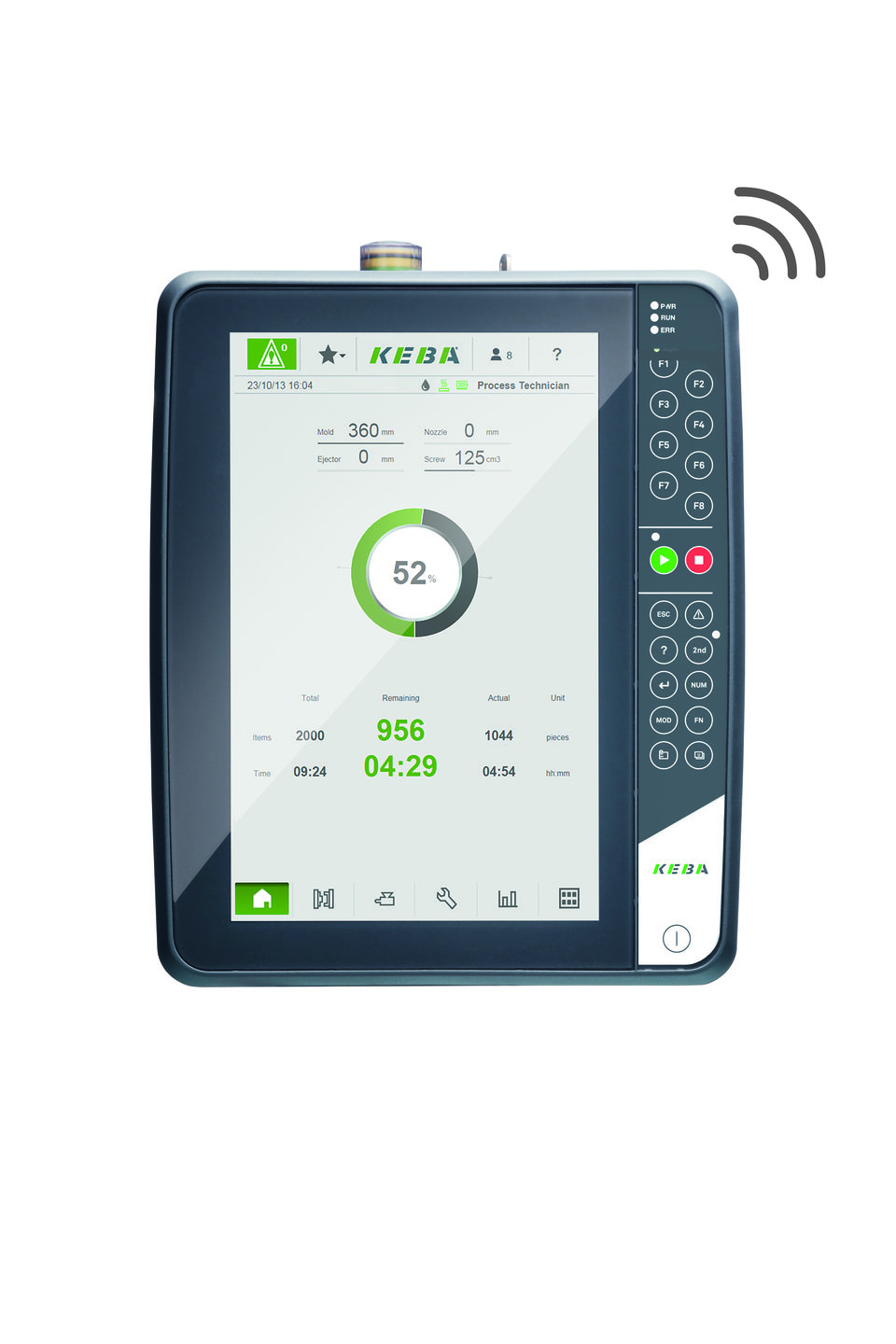

To ensure high-quality visualization, the HMI is equipped with a 10.1" capacitive touchscreen, enabling true multitouch functionality.

Powered by a DualCore processor and a 3500mAh battery with up to 4 hours of runtime, it delivers reliable, long-lasting performance. Weighing only 1400g, the device allows for effortless, comfortable operation.

Mobility is essential in many workplaces, and safety is a top priority. For secure yet convenient operation, the handheld pendant station includes an emergency stop and an enabling switch. Certified by TÜV Rheinland and meeting safety standards such as SIL3 and Kat4/PLe, it also holds radio approvals for Europe, Japan, the USA, and Canada.

The right solution for every system

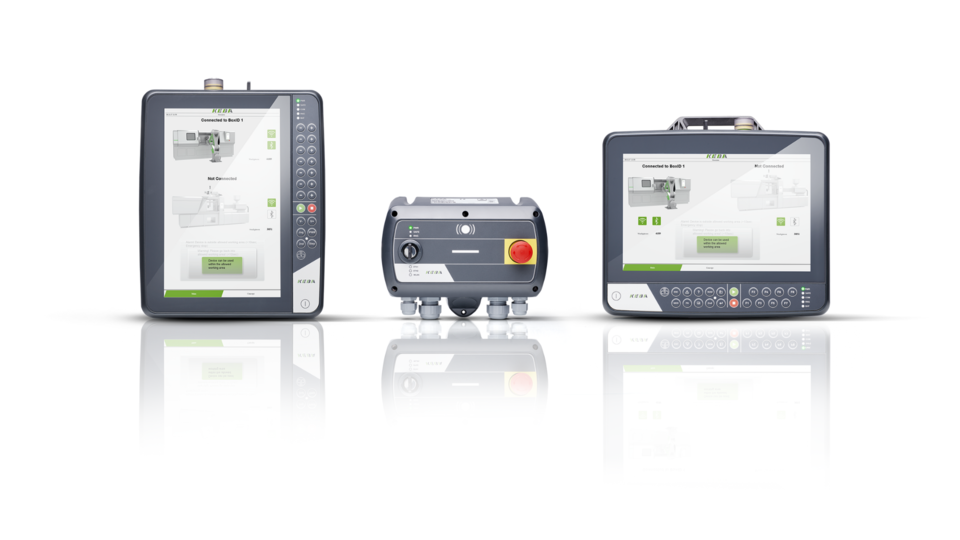

The KeTop T15x enhances user flexibility not only by allowing more freedom of movement when operating the handheld pendant station but also through its straightforward installation and integration. Equipped with Windows 10, multitouch functionality, and optional HMI software, the device provides extensive integration options for a wide range of workstations. With discrete safety outputs, the manual control unit is compatible with any control system, allowing for easy retrofit solutions.

The base station’s local WiFi network is exclusively accessible to the KeTop T15x, remaining hidden from other devices.

To meet security guidelines, users have the option to deactivate WiFi before and after pairing, eliminating the need for a dedicated security bus system and enabling seamless use with existing security measures and WiFi infrastructure.
