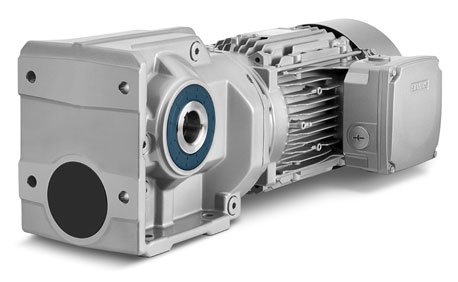

SIMOGEAR Helical Worm Gearboxes
Helical worm gearboxes are the favorably-priced solution for drives with angular geared motors. The efficiency is significantly better than that of pure worm geared motors due to the implementation as helical-worm geared motors.
Due to the worm gear stage, high ratios can be implemented within small envelope dimensions. Further, helical worm geared motors represent an extremely quiet drive solution. Helical worm geared motors represent the most cost-effective solution for angular geared motors in the lower torque range.
Features
- Economic solution especially for low power ranges
- High gear ratios
- Low noise
- Can be used even in narrow construction space
Mechanical construction
- Stages: 1 or 2
- Mounting: foot or flange-mounting versions, torque bracket
- Shaft: Solid shaft, Hollow shaft, SIMOLOC system
Typical applications
- Small conveyor belts
- Transport of packaged goods
- Rope lifter
Overview
|
|
Helical worm geared |
Worm geared
|
|---|---|---|
|
Gearbox designation |
C29…C89 |
S09… S29 (1-stage) |
|
Number of gearbox frame sizes |
5 |
3 |
|
Rated gearbox torque [Nm] |
110…1410 |
33…116 |
|
Gearbox ratio |
6,5 … 363 (2-stage)
|
5…100 |
|
Max. motor power [kW] |
7,5 |
0.55 |
