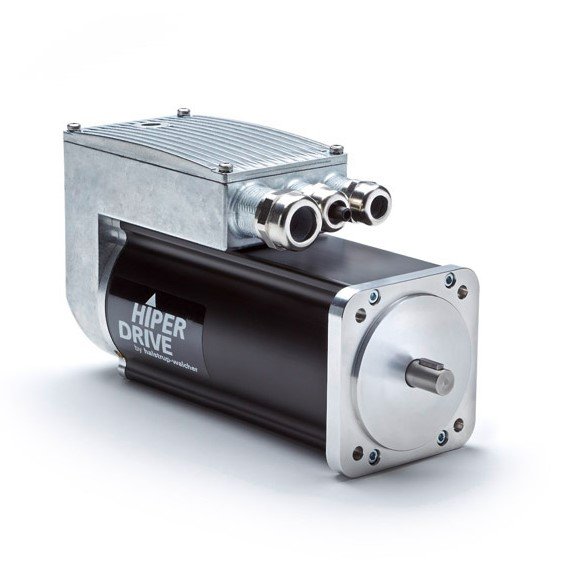

HIPERDRIVE HDA 70 Positioning System

Positioning system with 45 W nominal power output

Special features

Bus interfaces simplify start-up and wiring complexity
Durable EC-motor
Status messages retrievable via bus
With bevel gear (optional)

The HIPERDRIVE HDA 70 positioning drive allows adjustment procedures for positioning and auxiliary axes to be performed efficiently, at low cost and with a high degree of precision. The HIPERDRIVE is available with a PROFIBUS DP or Industrial Ethernet interface for direct connection to a control module and with RS 485 for connection to a Hub.
The HIPERDRIVE Hub is an ideal component for connecting a number of drives to a control module with PROFIBUS DP, EtherCAT, PROFINET or EtherNet/IP.

Advantages for the user:

Simple bus structure as only one bus node is required for up to 8 drives.
Simplified cabling as only one cable is used for the power supply and bus signal to the drive. This saves costs by reducing the number of cables and bus nodes required.

Overview

Catalogue excerpt / Data sheets

Data Sheet HDA 70-hub.pdf

Design	Longitudinal or horizontal construction (horizontal with bevel gear: radial type)
Nominal torque / Nominal rated speed	15 Nm / 27 rpm
Data interface	PROFIBUS DP, PROFINET, EtherCAT, EtherNet/IP, RS 485 (for control via Hub)
Positioning accuracy	± 1°
Output shaft	10 mm solid shaft with feather key (axial or radial) 10 / 12 mm hollow shaft (only radial, with bevel gear)
Positioning range	32,000 rotations, not subject to mechanical limits
Supply voltage	24 VDC
Protection class	IP 65
