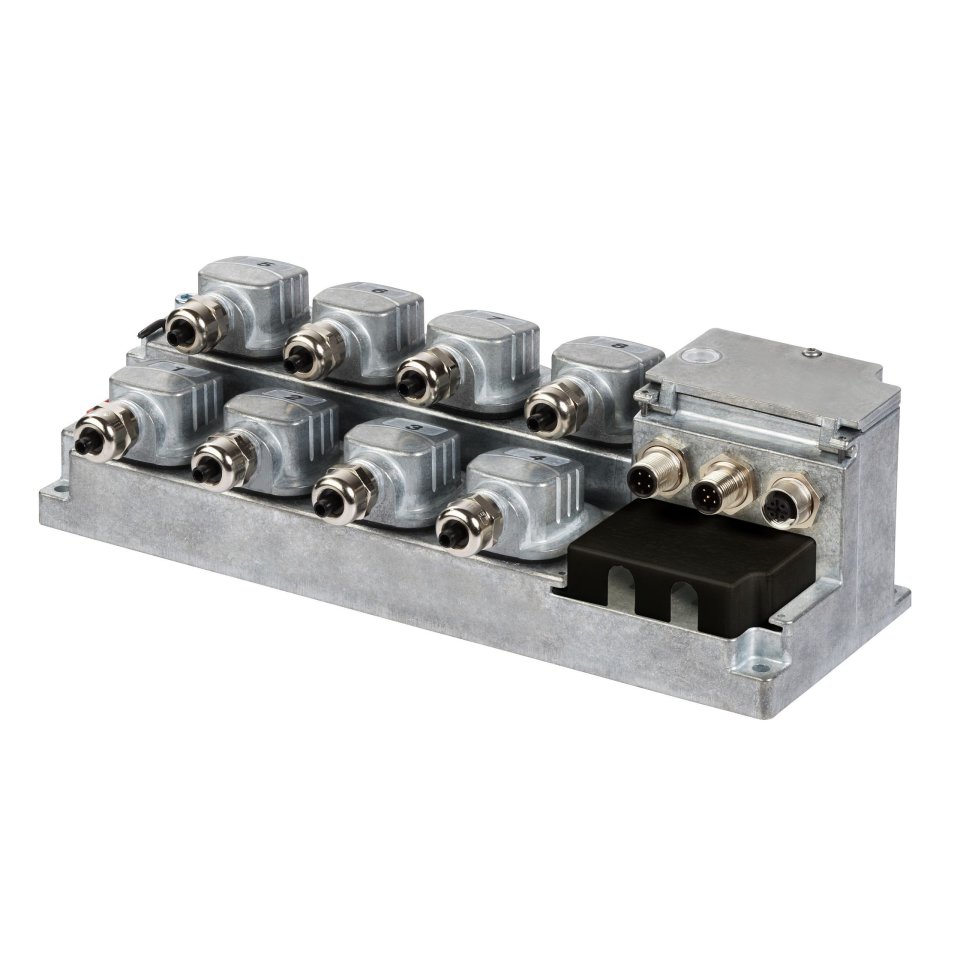

HIPERDRIVE Hub Positioning System connecting station

Hub for Hiperdrive Positioning systems HDA and PSE 441

Special features

PROFIBUS DP, EtherCAT, PROFINET or EtherNet/IP data interface
Communication between Hub and HDA 70 / PSE 441 via RS 485 data interface
Robust die-cast zinc housing with IP 65
Galvanic separation between control unit and motor
Fuses to protect the connected drives

The HIPERDRIVE Hub is the central connecting station for up to eight HIPERDRIVE units (HDA 70 or PSE 441). The bus interface and control module in the hub allows all the connected drives to be activated via just one address. In addition, the HIPERDRIVE Hub distributes the operating voltage for the drives. This means that only one cable (max. length 20m) is now required for connecting a drive rather than the two or three previously needed. Both data and power for the drives are transmitted via the same cable. For the HIPERDRIVE Hub itself, alongside the fieldbus and 24 V motor supply voltage, only a 24 V auxiliary voltage is required for the bus interface and control module.

Overview

Catalogue excerpt / Data sheets

Data Sheet HDA 70-hub.pdf

Power supply	24 VDC ± 15 %
Power consumption (control unit)	300 mA
Data interface	PROFIBUS DP, EtherCAT, PROFINET, EtherNet/IP
Protection class	IP 65
