PSE 100 Positioning System
Positioning system with analogue setting of target value, actual value report and release-input
Special features
- Enabling of positioning via floating contact
- Actual value report 0 .. 10 V
- Variable positioning range up to 20 rotations
- Release-input and position report ensure high level of functional

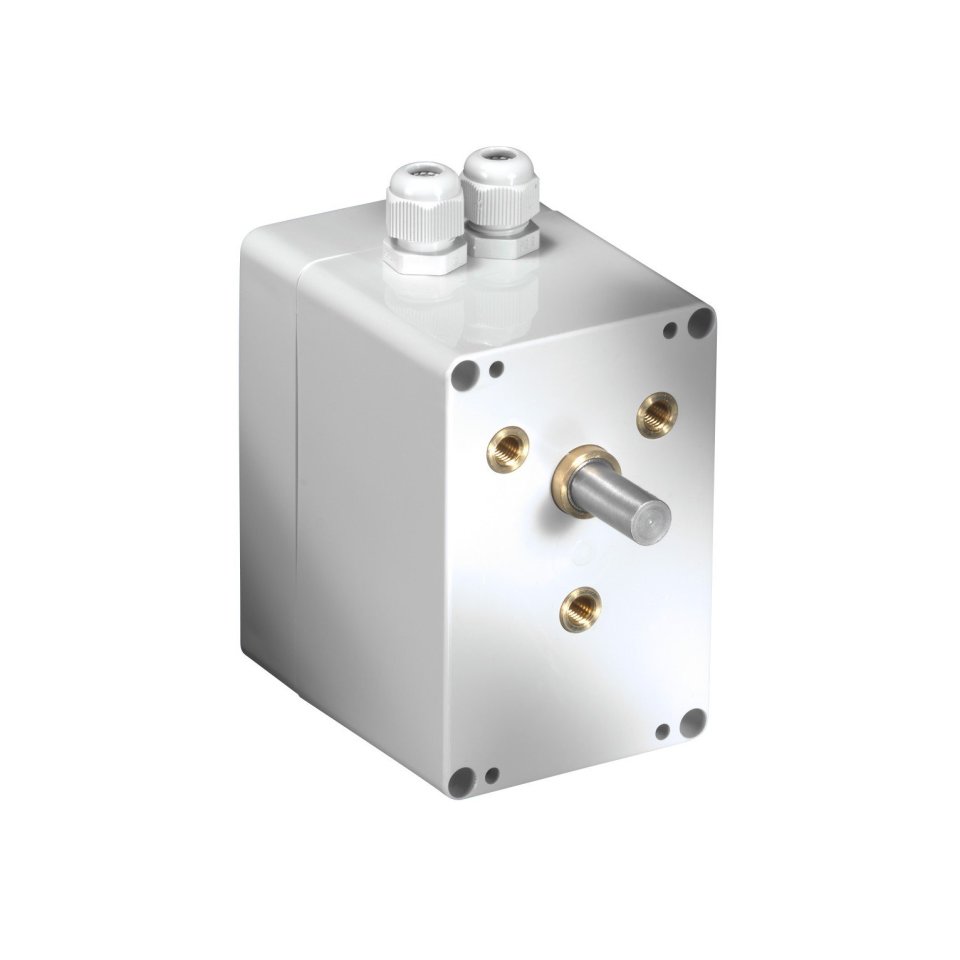

The PSE 100 positioning system is a complete system consisting of an actuator and a closed loop with a torque of up to 10 Nm. The target value is predefined via an analogue signal. The position is measured via an absolute measuring system and up to 20 rotations are possible. The position report is via an analogue signal 0 .. 10 V. A floating contact also signals when the target has been reached. A release-input ensures additional security during positioning.
Overview
Catalogue excerpt / Data sheets
| Nominal torque / Nominal rated speed | PSE 100/1: 2.5 Nm / 2 rpm PSE 100/2: 5 Nm / 1 rpm PSE 100/3: 10 Nm / 0.5 rpm PSE 100/4: 10 Nm / 0.25 rpm |
| Default analogue target value | 0 .. 10 V, 0/4 .. 20 mA |
| Position report | 0 .. 10 V, floating contact "position reached" |
| Positioning accuracy | 2 % of positioning range |
| Output shaft | 12 mm solid shaft |
| Positioning range | Max. 20 rotations |
| Supply voltage | 24 VAC, 115 VAC, 230 VAC |
| Protection class | IP 55 |
