Motrona Signal Converters
Maximum flexibility with extremly short conversion time and high frequency limit
Electronic pulse counters from motrona are used in automation and mechanical engineering in order to display, measure, calculate or control variables such as lengths, times or numbers. Our product range offers solutions from the classic pulse counter to multifunctional and extensively programmable direction counters, differential counters and preset counters with switching function as well as various outputs and interfaces.

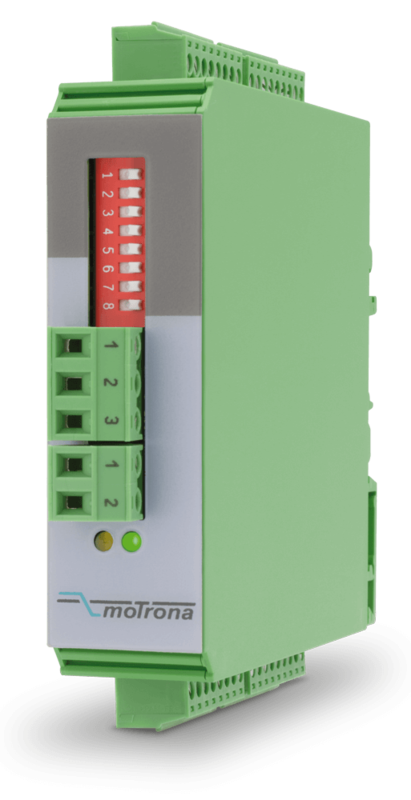

GV210: Dual Level Converter for HTL and RS422 / TTL
Two-level level converter, signal splitter and signal switch for simple snap mounting on a DIN rail. GV210 is a universal encoder interface (without potential separation) with 2 incremental encoder inputs for level conversion, distribution and contactless as well as bounce-free switching of encoder or encoder signals in HTL or RS422 format.
- 2 pulse inputs with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
- Input frequency up to 250 kHz for asymmetrical and up to 1 MHz for symmetric signals
- 2 control inputs for HTL / PNP signals [10 ... 30 VDC]
- 2 output channels with format A, B, Z [HTL] or
A, /A, B, /B, Z, /Z [RS422], each output adjustable separately - Power supply 12 ... 30 VDC
- Snap-on housing for top hat rail
(according to EN 60715)
