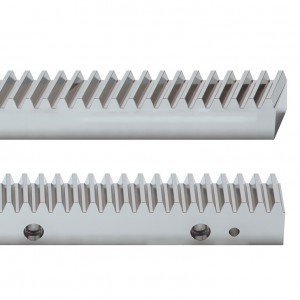

Atlanta Precision Racks: PR

Quality Class 8

Technical Data:

• Heat-treatable, bright steel according ATLANTA-Standard performance
• Teeth hardened with the ATLANTA high

• hardening process and ground
• Total pitch error GTf/1000 ≤0,060mm
• 19°31'42" helical and straight tooth system
• Module 2 to 5
• Max. feed force per pinion contact up to 64,5 kN

• Bright steel, backside machined
• Milled teeth, quenched and tempered
• Total pitch error GTf/1000 ≤0,100mm
• 19°31'42" helical and straight tooth system
• Module 2 to 4
• Max. feed force per pinion contact up to 27 kN

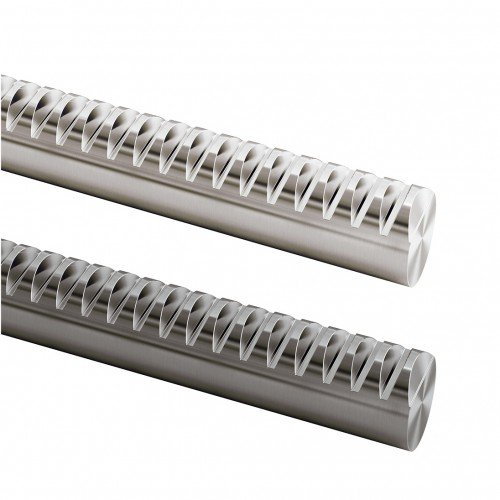

Stainless Steel Round Racks

Quality Class 8

Technical Data:

• Material: X8 Cr Ni 18-9
• Stainless
• Profile drawn
• Total pitch error GTf/1000 ≤ 0,015mm
• Module 1 to 3
• Length 1000 mm
• Max. feed force per pinion contact up to 5,6 kN
