S+L Individuell Pinions

Hardened and ground for rework

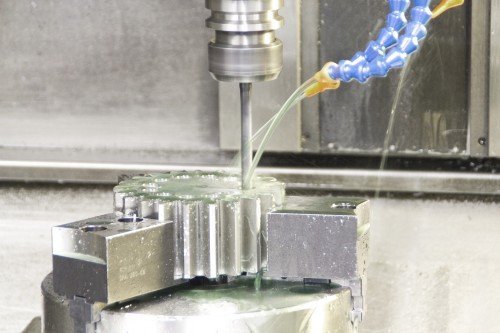

The S+L Individuell pinions are with hardened and ground teeth. Unlike the famous 24 series pinions they can be individually reworked in the keyway, bore and hub.

As versatile gears with precise and quiet operation, they are compatible with most pinions in our 24 series and can be used in combination with a shrink disc, for all standard types of gearboxes.

Technical Data:

• Material 16MnCr5, 1.7131
• Carburized, teeth induction hardened: 60HRC
• Gearing grade: 6e25
• Teeth grounded

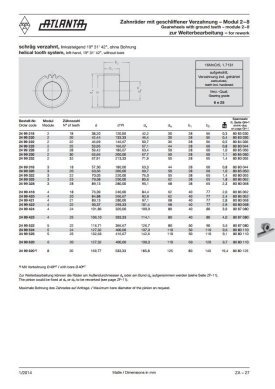

• Straight and helical tooth, left-hand 19°31'42"

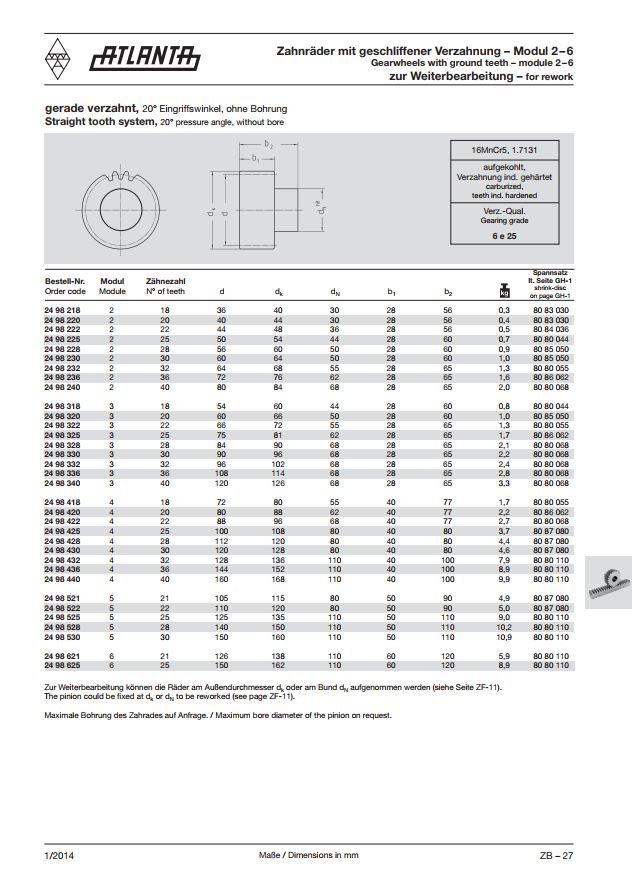

• Module 2-6 straight tooth, 2-8 helical tooth

Advantage of "S+L Individuell" pinions

• Special solution for your application
• Short delivery time
• Can be use in combination with shrink-disc
• Proven ATLANTA top quality
• ATLANTA racks optimised tooth shape for particularly smooth running
