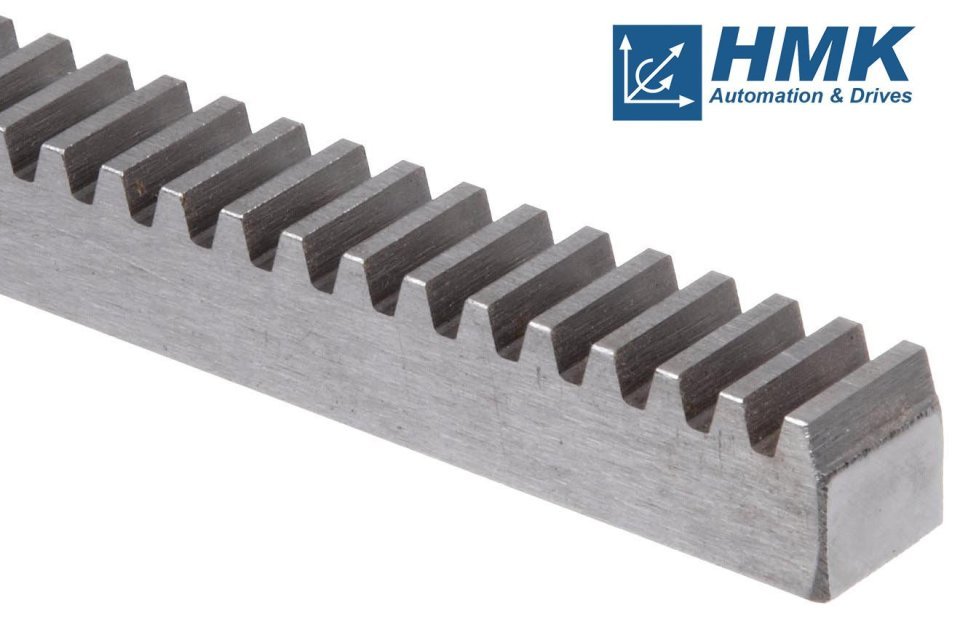

HMK Straight Toothed Basic Rack
Mod 1 Racks ffor Continuous Mounting in Steel EN8, (C45 Soft)
DIN Quality 9 (e27), JIS (5)
|
Code
|
Pitch Module |
Height (H) |
Width (W) |
Height to Pitch Line (Hp) |
No. of Teeth |
Length (L) |
|---|---|---|---|---|---|---|
|
SR/S/10/15/1 |
1 |
15 |
15 |
14 |
318 |
999.02 |
|
SR/S/10/15/2 |
636 |
1998.05 |
||||
|
SR/S/10/15/3 |
955 |
3002.22 |
||||
|
SR/S/15/17/1 |
1 .5 |
17 |
17 |
15.5 |
212 |
999.02 |
|
SR/S/15/17/2 |
424 |
1998.05 |
||||
|
SR/S/15/17/3 |
637 |
3001.79 |
||||
|
SR/S/20/20/1 |
2 |
20 |
20 |
18 |
159 |
999.02 |
|
SR/S/20/20/2 |
318 |
1998.05 |
||||
|
SR/S/20/20/3 |
478 |
3003.36 |
||||
|
SR/S/25/25/1 |
2 .5 |
25 |
25 |
22.5 |
127 |
997.45 |
|
SR/S/25/25/2 |
255 |
2002.77 |
||||
|
SR/S/25/25/3 |
382 |
3000.22 |
||||
|
SR/S/30/30/1 |
3 |
30 |
30 |
27 |
106 |
999.02 |
|
SR/S/30/30/2 |
212 |
1998.05 |
||||
|
SR/S/30/30/3 |
319 |
3006.5 |
||||
|
SR/S/40/40/1 |
4 |
40 |
40 |
36 |
80 |
1005.31 |
|
SR/S/40/40/2 |
159 |
1998.05 |
||||
|
SR/S/40/40/3 |
239 |
3003.36 |
||||
|
SR/S/50/50/1 |
5 |
50 |
50 |
45 |
64 |
1005.31 |
|
SR/S/50/50/2 |
128 |
2010.62 |
||||
|
SR/S/50/50/3 |
191 |
3000.22 |
||||
|
SR/S/60/60/1 |
6 |
60 |
60 |
54 |
53 |
999.02 |
|
SR/S/60/60/2 |
106 |
1998.05 |
||||
|
SR/S/80/80/1 |
8 |
80 |
80 |
72 |
40 |
1005.3 |
|
SR/S/80/80/2 |
80 |
2010.62 |
Sizes: All Dimensions in mm
Standard tolerances unless otherwise stated ±0.25mm.
Please note: All dimensions subject to change.
If a dimension is critical to your application, please contact our sales department for confirmation.
