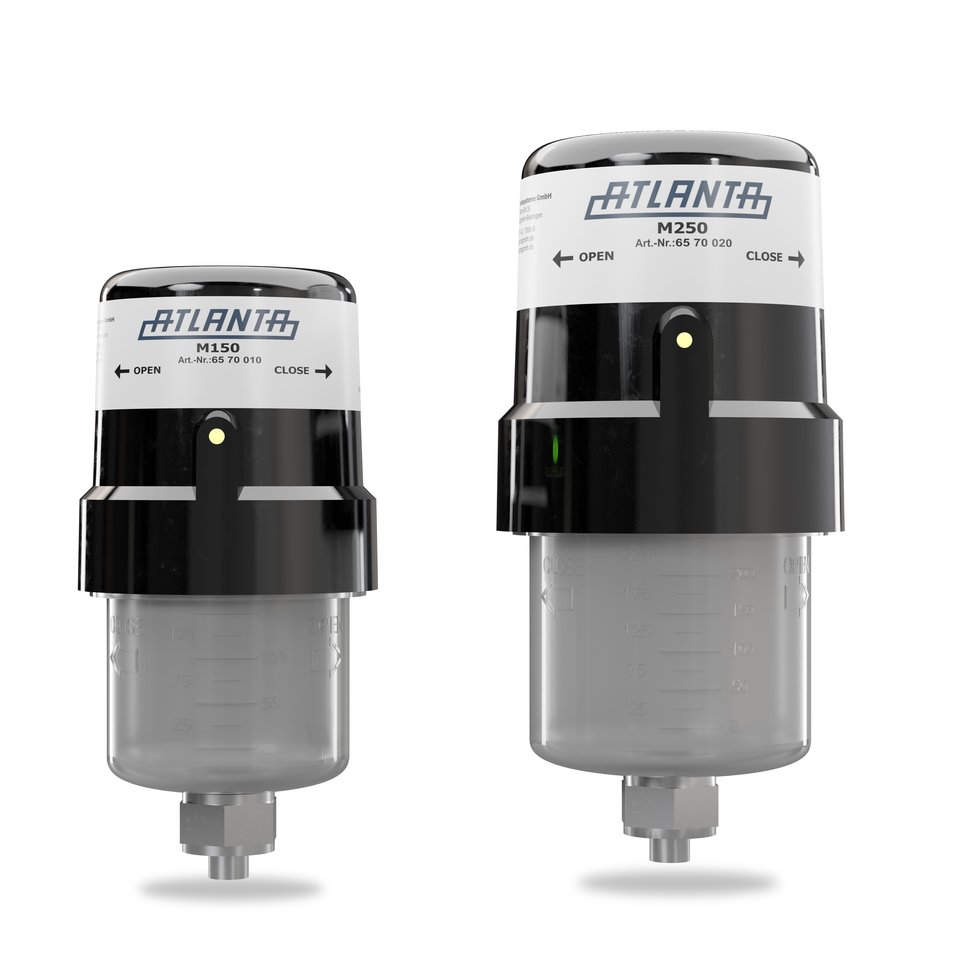

Type M60/M150 & M250

The single-point lubrication system type M is a reliable and easy to use electronically controlled lubrication box with an electromechanical drive. With its precise conveyor technology, this system is suitable for automatic lubrication of roller and sliding bearings, gear racks, open gears or chains and much more.

Type M - safe automatic lubrication

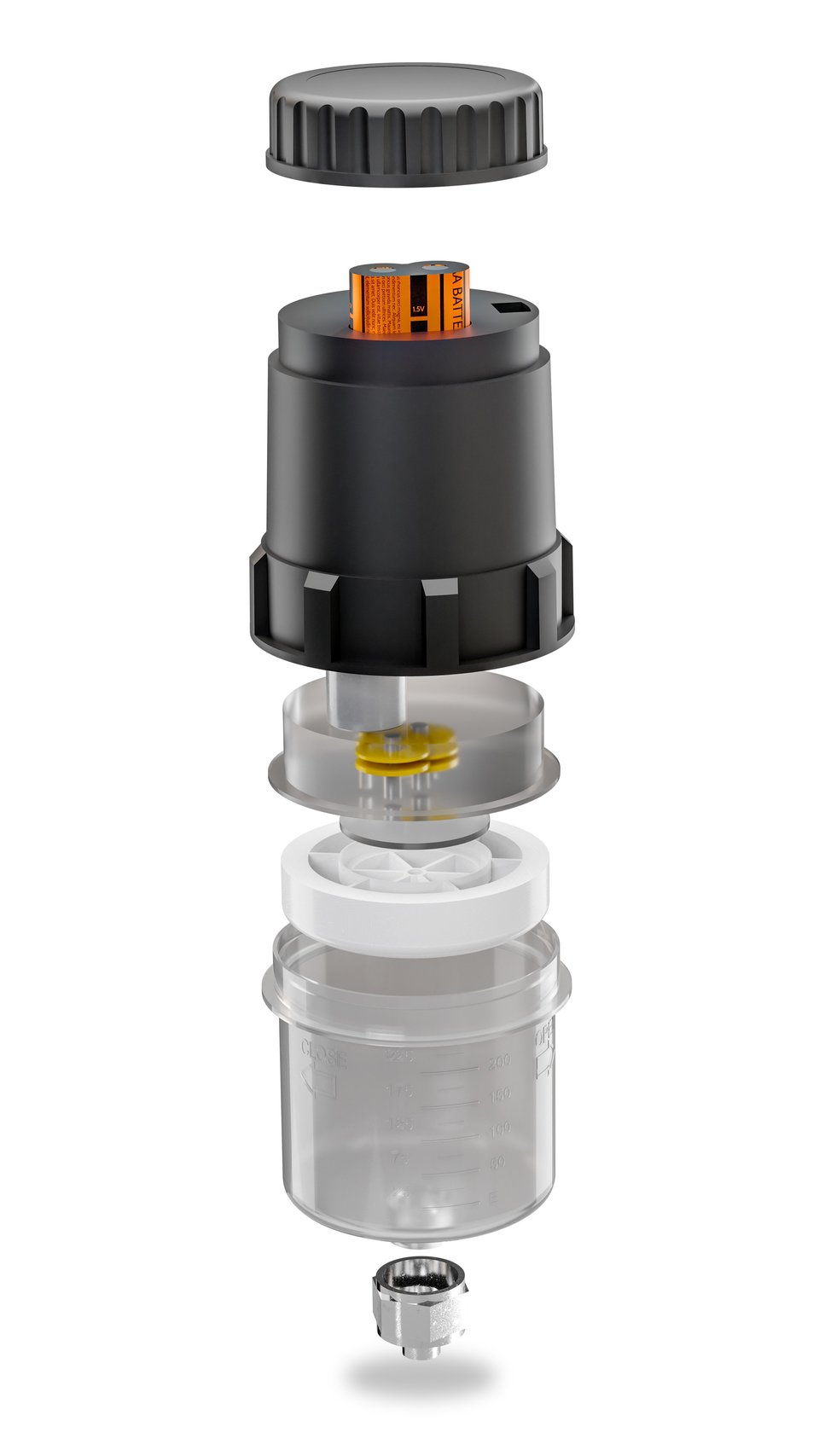

The lubrication system type M has a robust and very precise drive motor, which is supplied with a 6V Li high performance battery or externally by means of a 24V adapter. The lubricant cartridge - optionally with M60, M150 or M250 ml capacity - is simply screwed to the drive unit. The drive unit is thus reusable.

With a delivery pressure of 7.5 bar, type M operates automatically and temperature-independently for up to one year. The emptying time of the dispenser (dosing of the lubricant) can be freely selected between 1-12 months. It is possible to change the setting or switch off the unit at any time.

The function control of the type M is carried out by a clearly visible LED. In addition, the fill level of the lubricant cartridge is clearly visible at all times through the transparent housing. After complete emptying, further use is possible by refilling.
