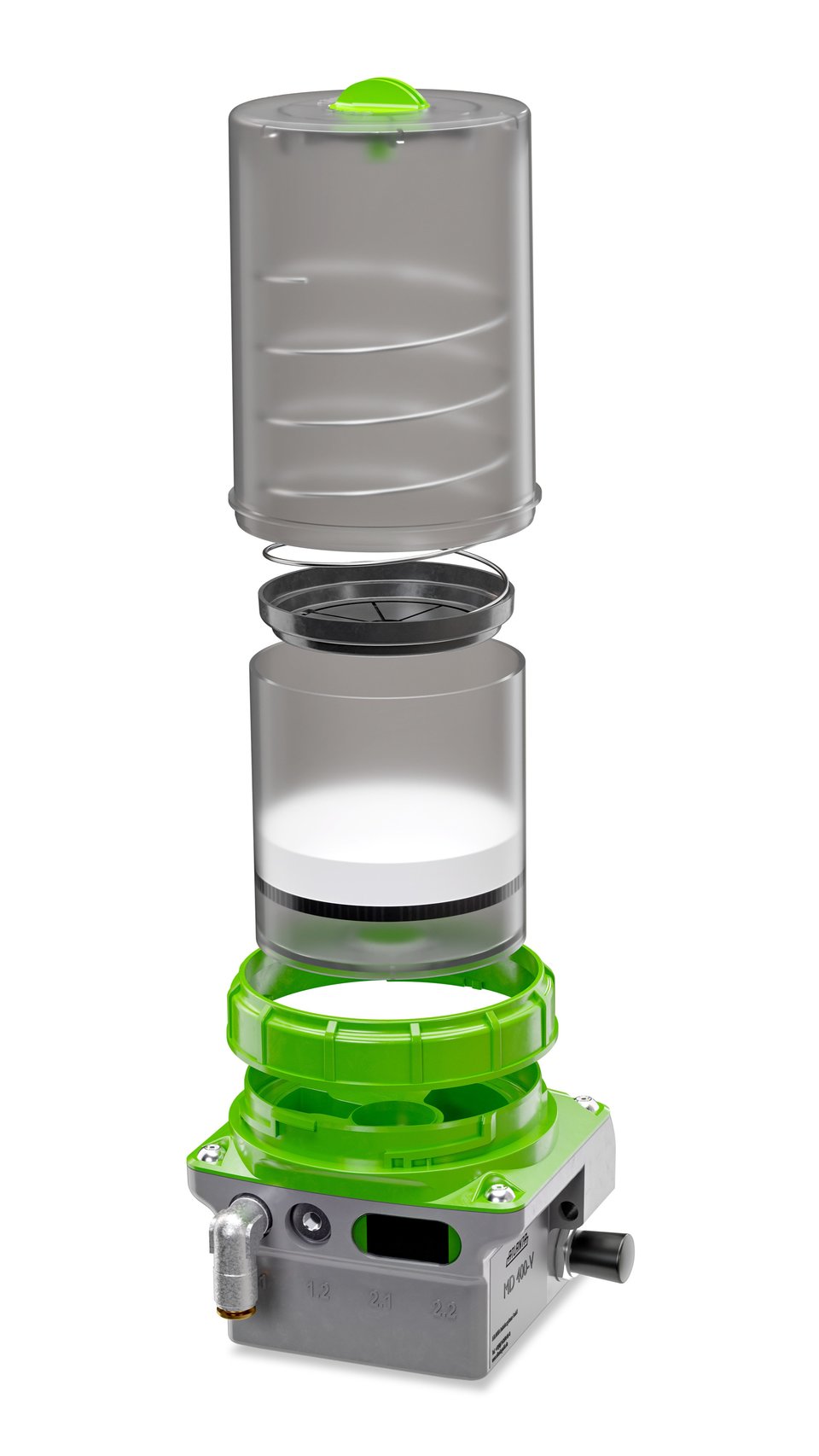

T​ype MD400


The single / multipoint- lubrication system type MD400 is a reliable and easy to use electronic lubrication system. With its precise conveyor technology, this system is suitable for automatic lubrication of roller and sliding bearings, racks, open gears, chains, ball screws, spindle drives and much more.
The type MD400 lubrication system opens a new door in the world of automatic lubrication. With the extremely versatile MD400 lubrication system, both individual lubrication points and a whole group of different types of lubrication points can be continuously and safely supplied with lubricant over a long period of time.



T​ype MD400 - flexible lubrication


The lubrication system type MD400 is an extremely compact and powerful lubrication unit for oils and greases up to NLGI class 2. The lubrication system works either autonomously with a battery pack (3V) or via an external power supply (24V DC).
Due to its compact dimensions, type MD400 is ideally suited for retrofitting in many applications.









































V​ariants of the Type MD400

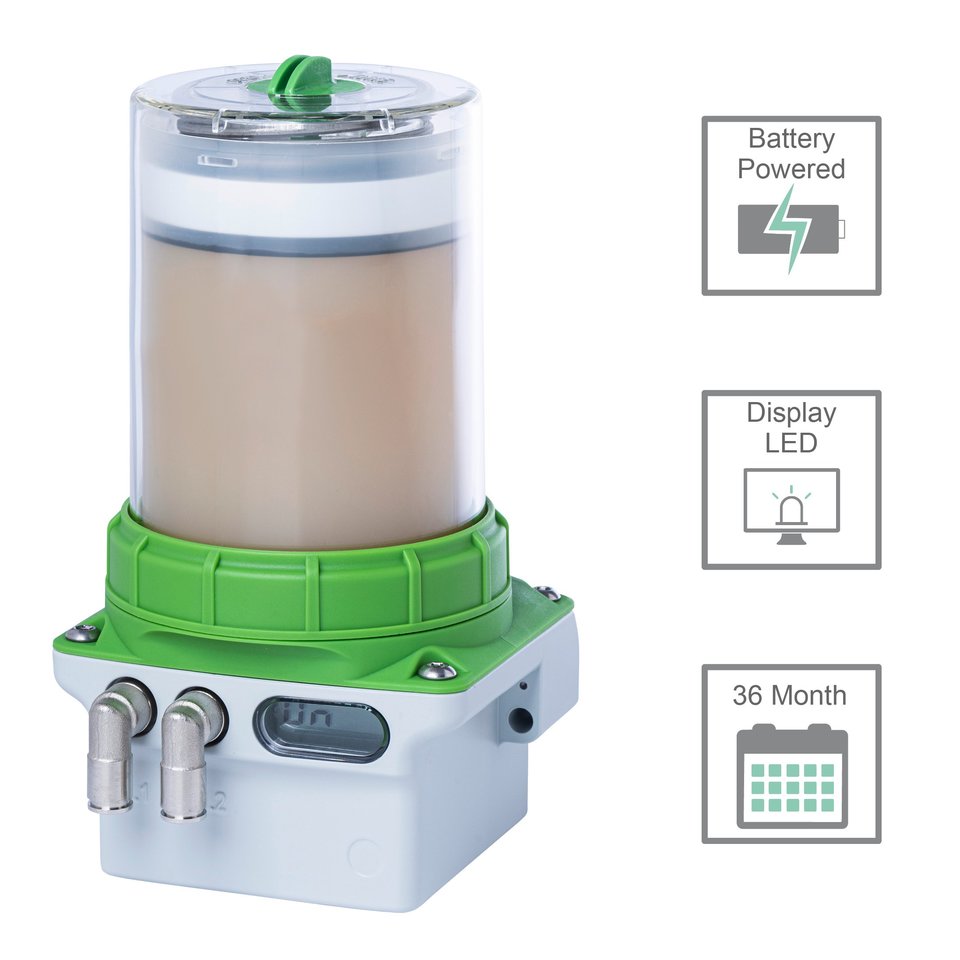

M​D400B

The battery-operated variant of the MD400 lubrication system is always used when an self-sufficent operation is desired or necessary. The highly-efficient battery pack can optionally be sent to empty the lubricant cartridge over a period of 1-36 month.

  • 1 or 2 outlets, 70 bar (1015 psi) supply pressure
  • LCD-Display with LED
  • Quick-Check (back-pressure readings

































M​D400D

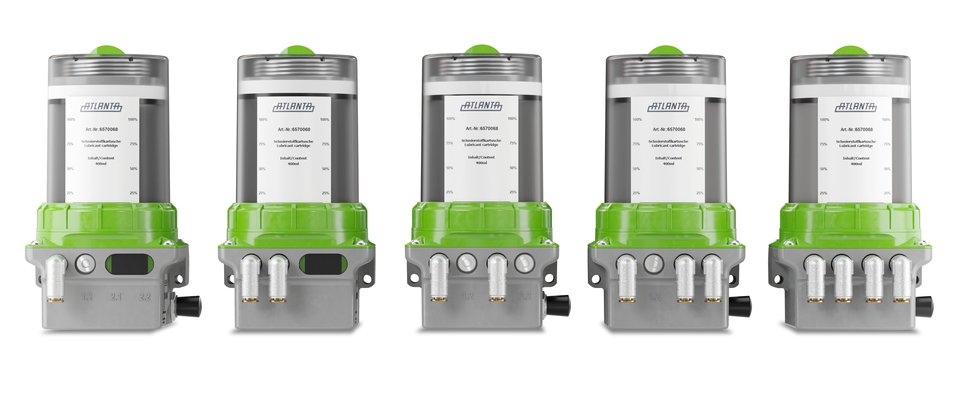

MD400D is designed for external control and 24 VDC voltage supply. Depending on the model, the MD400 lubrication system type D has 1,2, 3 or 4 outlets. Connection to the PLC is required.

  • 1, 2, 3 or 4 outlets, 70 bar (1015 psi) supply pressure
  • Flexible, individual control by PLC
  • Exact control and lubricant dosage
  • Feedback to the connected unit





















T​he advantages of Type MD400


  • p​recise, reliable delivery of lubricant
  • b​attery operation, voltage supply 24V or connection to machine control system
  • d​elivery pressure up to 70 bar (1015psi)
  • d​ispensing period 1-36 months
  • s​ynchronisation with the machine operating time possible
  • o​perating temperature -15C to +70C
  • v​isual warning of malfunction (LED and display)
  • v​acancy report
  • f​low rate independant of temperature
  • v​isual inspection of the fill level possible at any time
  • c​onnection of hose line possible
  • d​elivery of oils and greases up to NLGI-cl. 2
  • s​pecial fillings available
  •





































    M​D400V

    The 24V variant of the MD400 lubrication system is always the right choise when a power supply can be simply attached. The MD400 V strengths become particulary apparent during discontinous operations.

    • 1 or 2 outlets, 70 bar (1015 psi) supply pressure
    • LCD-Display with LED
    • Quick-Check (back-pressure readings)
    • Error readouts possible
