Integrated Measuring System Absolute With Rollers Typ AMSABS 3B

Integrated Measuring System For Absolute Distance Measurement Type AMSABS 3B For Rollers

The maximum length of a single-piece profiled guideway is six meters. But if required, several MONORAILS can be joined together.

AMS absolute cost savings in terms of design, production, logistics and commissioning.

The product AMSABS 3B for roller guideways now combines proven magneto-resistive measuring technology with an absolute digital interface.

With the proven advantages of AMS products like:

• Safe magneto-resistive sensing

• One-piece lengths up to 6 m

• An absolute digital interface

• Display of operating conditions

• Configuration and diagnosis options via a serial link

• Increased operational reliability attained by processing valid information

• One reading head for all sizes

• Complete interchangeability of rails and reading heads

• Schneeberger have added the following additional features to simplify the operation of distance measuring systems in industrial environments.

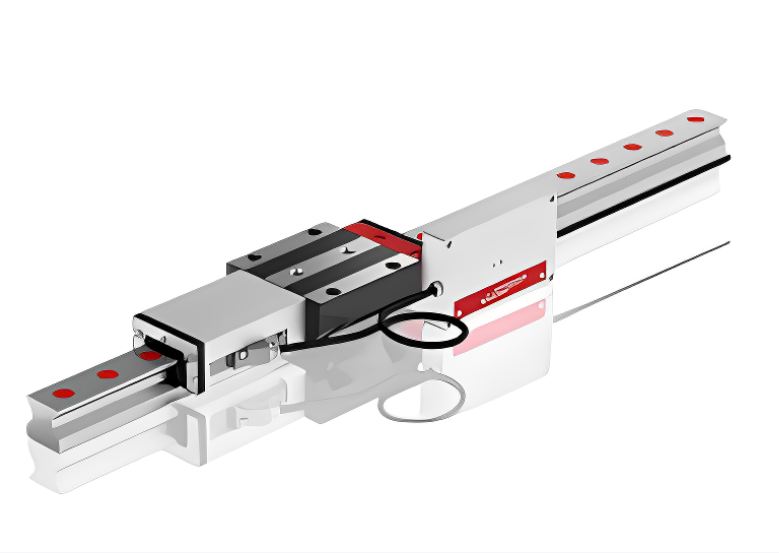

T​he MONORAIL AMS 3B, is an integrated magneto-resistive distance measuring system based on the MONORAIL MR roller profile guideway. This ensures compact axes with distance measurement and guidance that is especially suitable for use in machine tool applications. No additional assembly or adjustment of the measuring system is required by the operator. In fact, it delivers cost savings in the design, manufacture and maintenance of the equipment. By using the AMS 3B, accuracy and process reliability are improved.
