Integrated Measuring System Absolute With Balls Typ AMSABS 4B

I​ntegrated Measuring System For Absolute Distance Measurement Type AMSABS 4B For Balls

Magneto-resistive distance measuring system specially designed for applications in machine tools

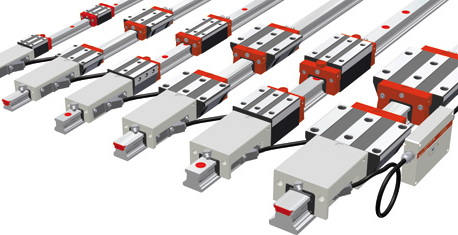

Measuring-heads in suitable sizes, so that they can easily be adapted to the guide systems.

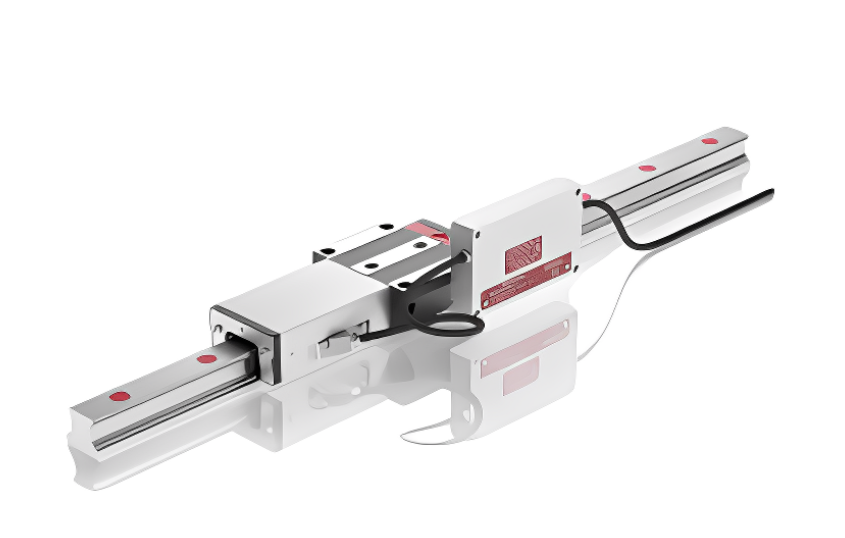

The Schneeberger MONORAIL AMSABS 4B, provides an integrated measuring system for absolute distance measurement for use in automation engineering, mechanical handling technology and machine tool engineering, whereby high force absorption and precise distance measurements are required in small assembly spaces. From a mechanical point of view, the AMSABS 4B is based on the MONORAIL BM roller guide up to a length of 6m. The distance measurement system’s compact housing facilitates the construction of highly compact axes. With the proven advantages of AMS products like

• Safe magneto-resistive sensing
• One-piece lengths up to 6 m (BM 15: 1500 mm; BM 20: 3000 mm)
• One reading head for all sizes
• Complete interchangeability of rails and reading heads

Schneeberger have added the following additional features to simplify the operation of distance measuring systems in industrial environments.

• An absolute digital interface
• Display of operating conditions
• Configuration and diagnosis options via a serial link
• Increased operational reliability attained by processing valid information
