​Incrementell With Balls Type AMSA 4B / Analog

I​NTEGRATED DISTANCE MEASURING SYSTEM TYPE AMSA 4B ANALOG WITH BALLS

Magneto-resistive distance measuring system specially designed for applications in machine tools

Suitable solutions are available for a wide range of applications at Schneeberger. This means that it is always possible to travel the most precise paths whilst adhering to the strictest tolerance.

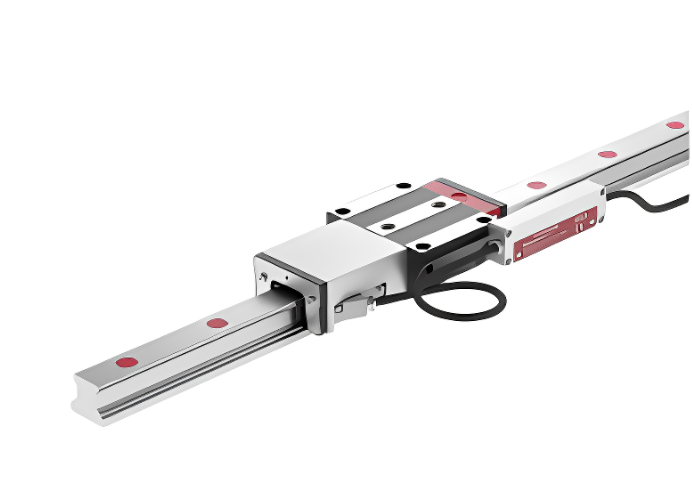

MONORAIL AMSA 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM profile ball guideway with an analog voltage interface. These products are preferred for use in applications that make major demands on travelling speed and accuracy. No additional assembly or adjustment of the measuring system is required, which is reflected by cost savings in machine design, manufacture and servicing.

The accuracy and process reliability of the machine are also improved. The sturdy housing for the read-head has a complete wiper system consisting of longitudinal and cross wipers, which provide optimum protection for the measuring system. The AMSA 4B version has an analog voltage interface of 1 Vss for connection to all standard control systems.
