L​ube-S (LS) Long-Term Lubrication

S​chneeberger MINIRAIL

carriages with long-term lubrication LUBE-S.

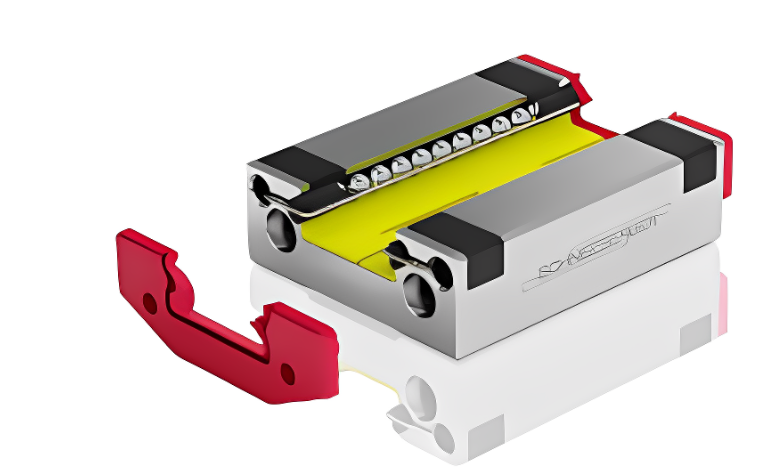

Maintenance free guideways-lubricant reservoir directly integrated into MINIRAIL carriages

The long-term lubrication LUBE-S for MINIRAIL carriages allows for uninterrupted, long-lasting and safe operation. This reduces maintenance costs, thanks to extensive freedom from maintenance. She is for SCHNEEBERGER MINIRAIL miniature guideway an easily interchangeable lubricant reservoir directly integrated into MINIRAIL carriages.

It applies the lubricant externally in all orientations directly to the ball recirculation tracks by means of the capillary effect. LUBE-S is integrated into the inside of the carriage and lubricates all ball bearings that are directly under load. LUBE-S ensures lubrication even during short-stroke applications.

U​sing The Long-Term Lubrication LUBE-S

• Maintenance-free for 20,000 km under normal environmental conditions and the corresponding load
• The carriage length remains unchanged and does not affect the maximum stroke
• LUBE-S is the optimal lubricant for all short-stroke applications
• LUBE-S lubricates the ball bearings which are directly under load
• The smoothness, push force and service life are maintained long-term thanks to LUBE-S
• Maintenance costs are reduced substantially
• The minimal consumption of lubricant is good for the environment
• LUBE-S can be easily replaced

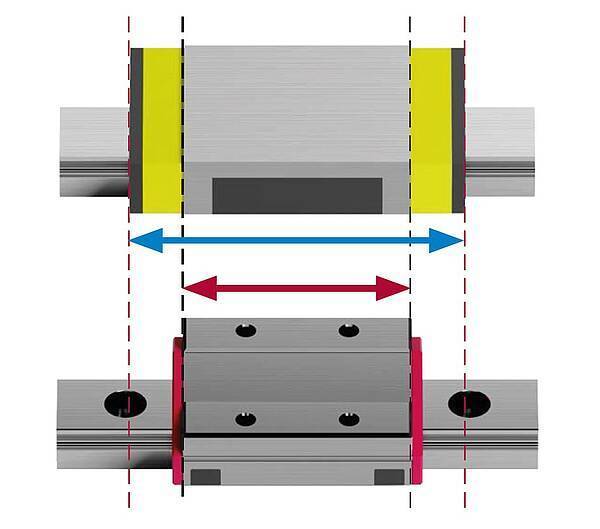

The external dimensions of the carriages remain the same. The maximum stroke is therefore not affected.

Smoothness

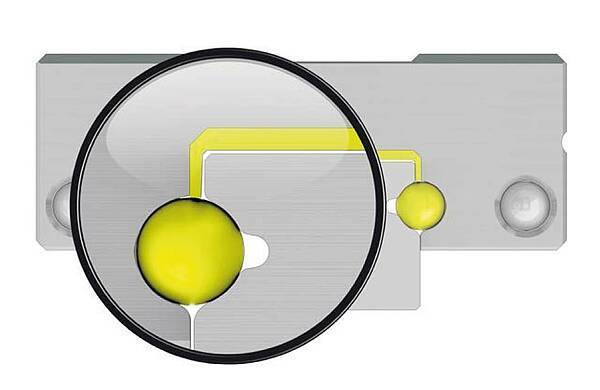

The LUBE-S oil reservoir contacts the ball bearings at a single point. The push forces of the carriages are therefore not affected and the smoothness of the MINIRAIL system is maintained at a high level.
