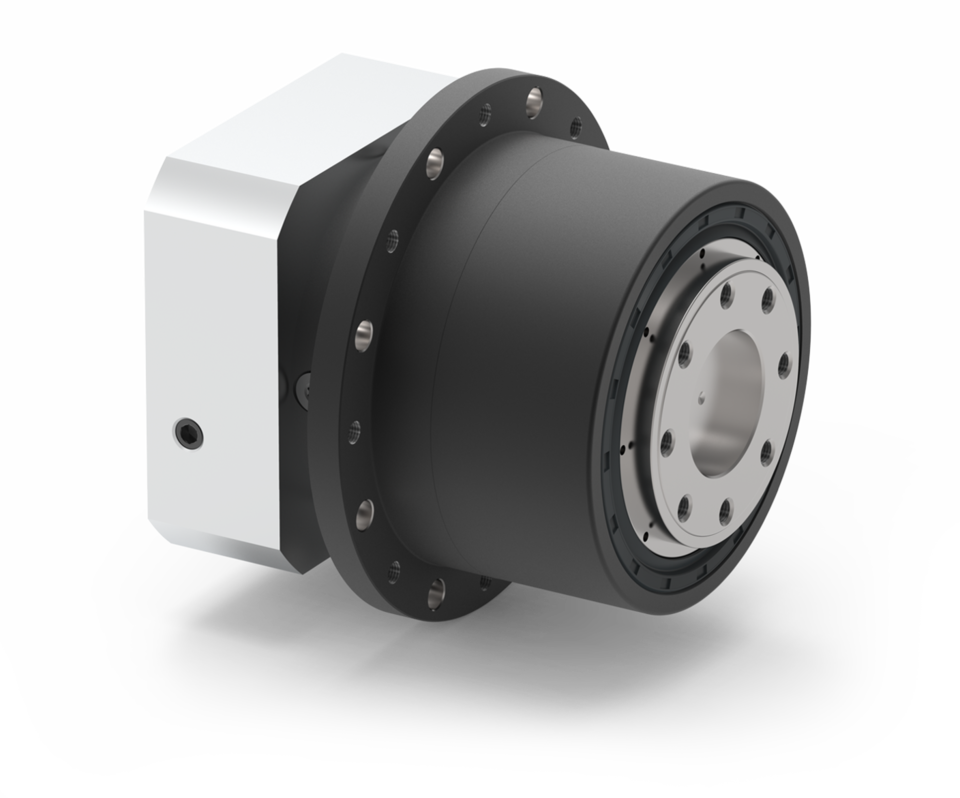

Neugart NGV

Application-specific planetary gearbox

Automated guided vehicles have special requirements when it comes to drive technology. These include high radial loads, space-saving design, 24/7 use and energy efficiency. With its special output bearing concept and the option of direct mounting of the vehicle chassis, our NGV planetary gearbox precisely meets these requirements.

Available in five sizes: 64, 90, 110

Features

Application-specific gearbox
Coaxial gearbox
Spur gear
Preloaded angular contact roller bearings
Rotary shaft seal
Extra large round type output flange
Extra long cantering collar
Very short gearbox
Equidirectional rotation
Planet carrier in disc design

Direct mounting

The mounting interface allows direct mounting of the gearbox to the vehicle. No additional adapters are required.

Reduction of installation space

The gearbox is almost completely enclosed by the wheel. The required installation space in the vehicle is therefore reduced to a minimum.

High load capacity

The preloaded, double-designed angular contact roller bearings permit very high radial forces.

High efficiency and reliability

The proven gearbox type from Neugart Economy series is characterised by a high efficiency. Thanks to its lifetime lubrica it is also maintenance-free and extremely reliable, even in continuous operation.
